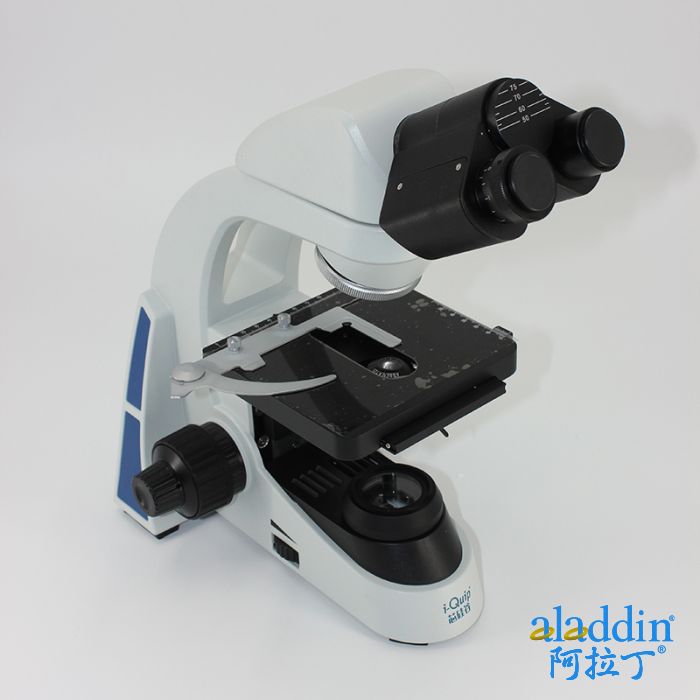

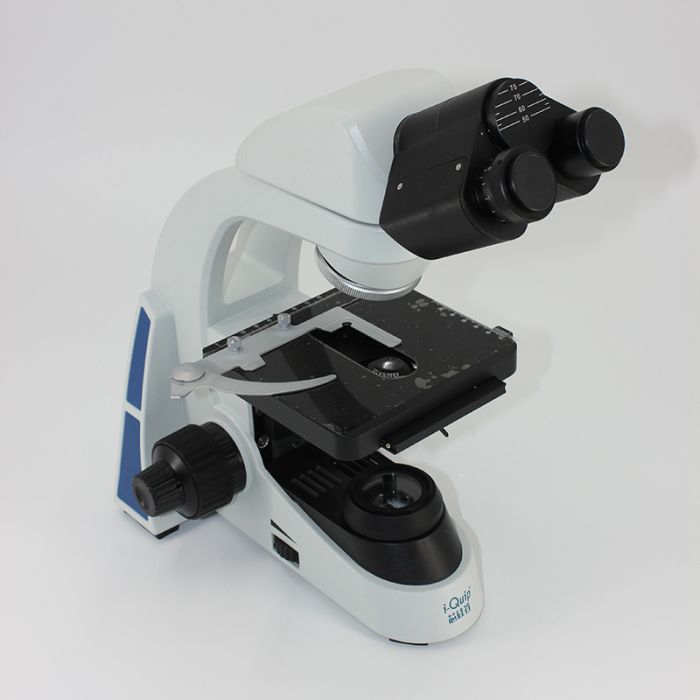

正置生物显微镜 | 小学用显微镜 | 光学显微镜, Student Biological Compound Microscope | Compound Upright Microscopes | Biological Microscope
全新生物显微镜致力于生命科学探索,简单易用的操作,清晰亮丽的像质,激发学生对微观生命世界的无限想象,助力未来科学家的诞生.该生物显微镜主要用于小学、中学的教学实验中.
● 秀于外,慧其中,精工细做,坚实品质.
● 小型高刚性,独具匠身:生物显微镜小型化,高刚性的本体,充分考虑使用群体的生理特征,镜臂镂空设计在保证整体稳定性的同时,极大的减少了机身重量.镂空部位构成左右扶手,单手即可搬运.
● LED照明系统,多种电源规格模块可选:生物显微镜并没有因为定位低端而降低配置，系列机型全部采用高性能单颗大功率LED灯源组件，提供充足、稳定、接近自然日光的照明光线.节能环保,高效长寿,无需维护;带独立电源开关与调光开关;可选择带充电电池组件的机型,确保在无外接电源的情况下依旧正常运作,可连续使用8小时以上,满足野外科学实验的要求.
● 光学系统:采用有限远色差校正系统
● 观察筒:单目或双目或三目或一体化铰链式数码观察头观察头,30°倾斜
● E5976-05 30°倾斜,铰链式三目观察筒,瞳距调节:50-75mm,单边视度调节:±5屈光度,固定式分光比R:T:80:20
● 目镜:大视野平场目镜PL10X/18mm,可带指针或测微尺
● 物镜:平场消色差
● 物镜转换器:内定位四孔物镜转换器
● 机架:E5976-05采用低手位粗微同轴调焦机构,粗调行程25mm,微调精度0.002mm,带有防止下滑的调节松紧装置和机械式上限位装置;3W LED照明,预定中心,亮度连续可调,内置100V-240V-AC50/60Hz开关电源
● 载物台:140mm×132mm双层复合机械移动平台,移动范围:76mm×50mm;精度0.1mm
● 聚光镜:阿贝式聚光镜,数值孔径N.A 1.25,带可变孔径光阑
规格和参数
|
Biological microscope with elaborate appearance and reliable quality, is beautiful and practical. Its easy operation and clear image inspire students' imagination and interesting of microscopy world, is helpful to explore the mystery of life science. New generation of scientists are born from here.
● The personal belonging of young scientists
● Compact and solid,innovative frame:High rigid but small as E5 series is, specially designed for students. The frame with hollow design is lightweight but stable, easy to carry. Pure white body with blue on the both sides, is fresh and vivid.
● Ergonomics design:According to different interpupillary distances and eyesights of different people, the spacing of binocular tubes can be adjustable from 50mm to 75mm and the left tube with the focusing device, diopter is ±5 adjustable.
● Optical system:Finite color corrected optical system
● Viewing head:monocular head or binocular head or trinocular head or digital viewing head,30° inclined
● E5976-05 30° inclined trinocular head,splitting ratio R:T=80:20,interpupillary distance:50-75mm,±5 diopter adjustable
● Eyepiece:Wide field plan eyepiece PL10X/18mm with/without reticle;PL10X/18mm with/without pointer
● Objective:Plan achromatic objective
● Nosepiece:Quadruple nosepiece
● Frame:E5976-05Coaxial coarse and fine adjustment, with coarse adjustment stop and tightness adjustment, range: 25mm, precision: 0.002mm.3W LED, center presetting, intensity adjustable, internal switch 100V-240V_AC50/60Hz
● Stage:132mm×140mm double layers mechanical stage,moving range:50mm×76mm,precision:0.1mm.
● Condenser:N.A.1.25 Abbe condenser with iris diaphragm
