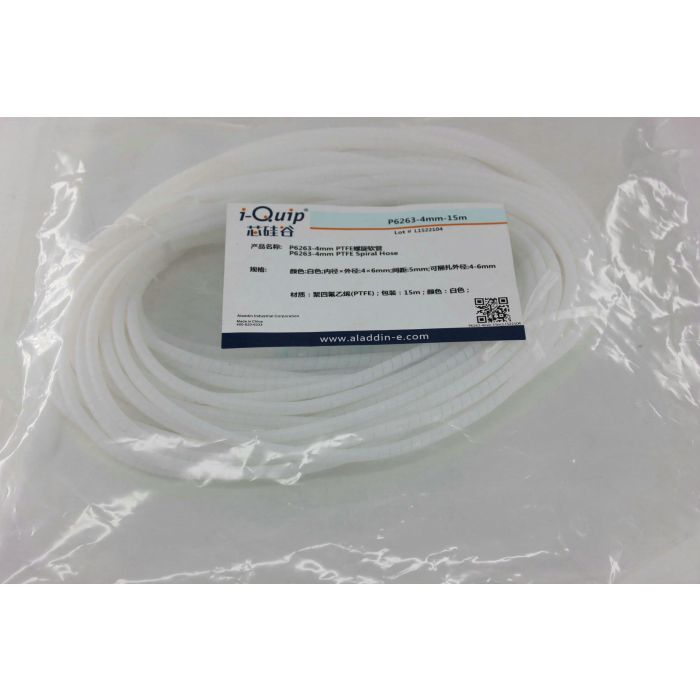

PTFE螺旋软管

品牌：芯硅谷

低至 ¥434.90

只有 %1 左

Skip to the end of the images gallery

Skip to the beginning of the images gallery

基本信息

产品名称	PTFE螺旋软管
英文名称	6263-02 PTFE Spiral Wrap
品牌	芯硅谷
规格或纯度	颜色:白色

一般描述

特氟隆软管具有较好的柔软性,即使弯曲也不会折断或破损,可安心使用于连续反复的弯曲和振动.
● 材质:聚四氟乙烯(PTFE)
● 颜色:白色　
● 捆扎操作简单
● 绝缘性好
● 易清洗,分量轻
● 广泛适用于制药、化学药品、食品、饮料等领域

规格和参数

货号	品名	颜色	内径×外径	间距	可捆扎外径	包装
P6263-4mm-15m	PTFE螺旋软管	白色	4×6mm	5mm	4-6mm	15m
P6263-8mm-15m	PTFE螺旋软管	白色	8×10mm	5mm	8-12mm	15m
P6263-10mm-15m	PTFE螺旋软管	白色	10×12mm	5mm	10-16mm	15m
P6263-14mm-15m	PTFE螺旋软管	白色	14×16mm	8mm	14-22mm	15m
P6263-12mm-15m	PTFE螺旋软管	白色	12×14mm	8mm	12-18mm	15m
P6263-02-15m	PTFE螺旋软管	白色	6×8mm	5mm	6-10mm	15m

PTFE hose has good flexibility,even if the bending will not broken or damaged,safe for use in continuous repeated bending and vibration.
● Material:Polytetrafluoroethylene(PTFE)
● Color:White
● Simple binding operation
● Good insulation
● Easy to clean,light weight
● Widely used in pharmaceutical,chemical,food,beverage and other areas

Specifications and parameters

Item No.	Color	Inside Diameter×Outside Diameter	Pitch	Bundle Range	Package
P6263-4mm-15m	White	4×6mm	5mm	4-6mm	15m
P6263-8mm-15m	White	8×10mm	5mm	8-12mm	15m
P6263-10mm-15m	White	10×12mm	5mm	10-16mm	15m
P6263-14mm-15m	White	14×16mm	8mm	14-22mm	15m
P6263-12mm-15m	White	12×14mm	8mm	12-18mm	15m
P6263-02-15m	White	6×8mm	5mm	6-10mm	15m
