货号	品名	目镜	物镜	调焦镜筒	光阑	描述	包装
B1921-01-1EA	教学用单目生物显微镜	H10×,H12.5×	4×/0.1,10×/0.25,40×S/0.65	弯臂机架,镜筒可升降,带有限位和打滑机构	五孔转盘式光阑	-	1台


B1921-04-1EA	教学用单目生物显微镜	H5×,H10×,H16×	10×/0.25,40×S/0.65,100×S/1.25(oil)	弯臂机架,镜筒可升降,带有限位和打滑机构(可安装阿贝聚光镜)	可变光栏,带滤色镜托架	-	1台


B1921-07-1EA	广角目镜	-	-	-	-	WF10/18mm	1个


B1921-05-1EA	惠更斯目镜	-	-	-	-	H12.5×	1个

B1921-06-1EA	惠更斯目镜	-	-	-	-	H16×	1个

技术文档

📋 安全数据表 (SDS)

全面的危险、操作、储存及法规合规文件。

下载 SDS →

✅ 分析证书 (COA)

批次质量数据。输入批号以获取对应 COA。

查询 COA →

📊 产品数据表

产品规格和应用的快速参考摘要。

查看数据表 →

🔬 规格说明书

该级别的完整质量属性和验收标准。

查看规格说明 →

高级数据

一般描述

货号	品名	目镜	物镜	调焦镜筒	光阑	描述	包装
B1921-01-1EA	教学用单目生物显微镜	H10×,H12.5×	4×/0.1,10×/0.25,40×S/0.65	弯臂机架,镜筒可升降,带有限位和打滑机构	五孔转盘式光阑	-	1台


B1921-04-1EA	教学用单目生物显微镜	H5×,H10×,H16×	10×/0.25,40×S/0.65,100×S/1.25(oil)	弯臂机架,镜筒可升降,带有限位和打滑机构(可安装阿贝聚光镜)	可变光栏,带滤色镜托架	-	1台


B1921-07-1EA	广角目镜	-	-	-	-	WF10/18mm	1个


B1921-05-1EA	惠更斯目镜	-	-	-	-	H12.5×	1个

B1921-06-1EA	惠更斯目镜	-	-	-	-	H16×	1个

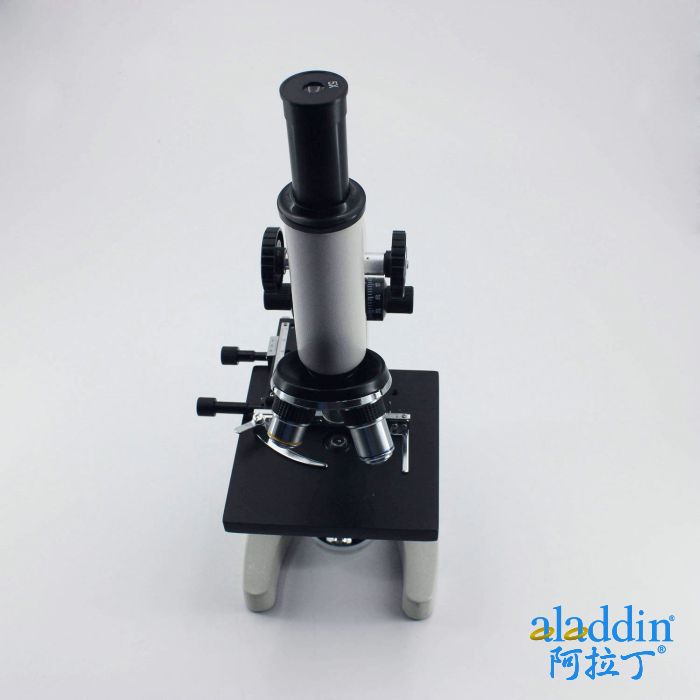

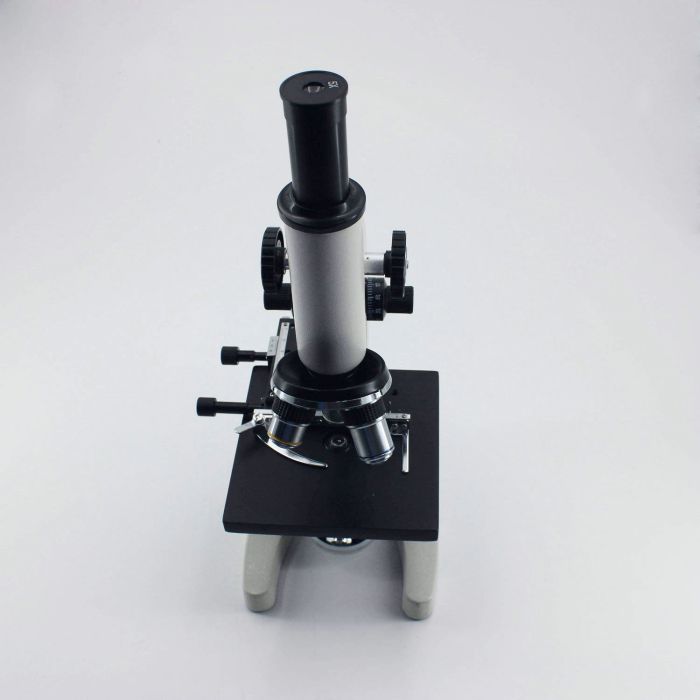

Microscopes that set the standard for middle/high school instruction and include all the most commonly specified features.
● Widefield 10X eyepiece with revolving pointer
● Viewing head rotates 360°for easy repositioning of eyepiece and sharing by more than one student
● 3-hole nosepiece is ball-bearing mounted for more precise alignment,has positive click stops
● Superior quality metal for the viewing head,the focus system and the stage
● Focus system with an adjustable stop block and a damper
● wodden case,easy to keep and take along

TITLE	Eyepiece	Objective	Focusing drawtube and stand	Diaphragm	Description
B1921-05-1EA	-	-	-	-	H12.5×
B1921-07-1EA	-	-	-	-	WF10/18mm
B1921-01-1EA	H10×,H12.5×	4×/0.1,10×/0.25,40×S/0.65	Drawtube lift and arm stand,with rack stop and skid device	Disc diaphragm	-
B1921-06-1EA	-	-	-	-	H16×
B1921-04-1EA	H5×,H10×,H16×	10×/0.25,40×S/0.65,100×S/1.25(oil)	Drawtube lift and arm stand,with rack stop and skid device(Abbe condenser can be mounted)	Iris diaphragm,with filter holder	-
