本品系国外普遍适用的低压闪式层析柱,粗孔隙率的砂板用于支撑填充材料.在加压柱色谱分离时,通常与压力钳配用.每个层析柱标配一个四氟节门塞
● 材质:高硼硅玻璃
● 颜色:透明
● 带有砂板

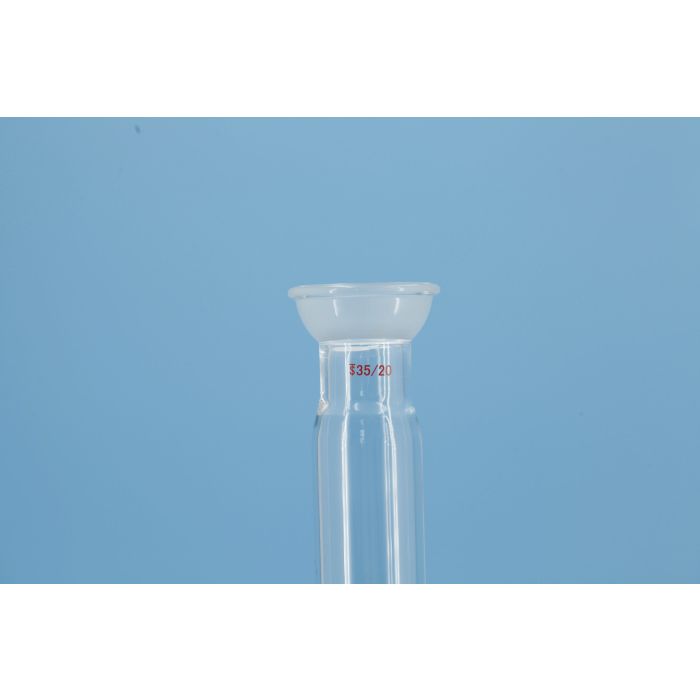

● 层析柱在其顶部有一标准球磨口,在底部有四氟节门塞
● 球磨口优点:拆卸方便,灵活度高,密封性好,可用于多角度扭转
● 配件:A3541-03 球磨夹;A3505-01 1:5 直孔四氟节门塞

货号	外径	内径	壁厚	有效长度	磨口	节门	包装
C3580-09-1EA	32mm	26mm	3mm	254mm	35/20	2mm	1个
C3580-03-1EA	17mm	13.4mm	1.8mm	305mm	35/20	2mm	1个
C3580-01-1EA	17mm	13.4mm	1.8mm	203mm	35/20	2mm	1个
C3580-15-1EA	46mm	40mm	3mm	457mm	35/20	2mm	1个
C3580-07-1EA	26mm	20mm	3mm	457mm	35/20	2mm	1个
C3580-14-1EA	46mm	40mm	3mm	305mm	35/20	2mm	1个
C3580-10-1EA	32mm	26mm	3mm	305mm	35/20	2mm	1个
C3580-13-1EA	46mm	40mm	3mm	254mm	35/20	2mm	1个
C3580-05-1EA	26mm	20mm	3mm	254mm	24/40	2mm	1个
C3580-04-1EA	26mm	20mm	3mm	203mm	35/20	2mm	1个
C3580-11-1EA	32mm	26mm	3mm	457mm	35/20	2mm	1个
C3580-06-1EA	26mm	20mm	3mm	305mm	35/20	2mm	1个
C3580-02-1EA	17mm	13.4mm	1.8mm	254mm	35/20	2mm	1个
C3580-12-1EA	46mm	40mm	3mm	203mm	35/20	2mm	1个
C3580-08-1EA	32mm	26mm	3mm	203mm	35/20	2mm	1个

技术文档

📋 安全数据表 (SDS)

全面的危险、操作、储存及法规合规文件。

下载 SDS →

✅ 分析证书 (COA)

批次质量数据。输入批号以获取对应 COA。

查询 COA →

📊 产品数据表

产品规格和应用的快速参考摘要。

查看数据表 →

🔬 规格说明书

该级别的完整质量属性和验收标准。

查看规格说明 →

高级数据

一般描述

货号	外径	内径	壁厚	有效长度	磨口	节门	包装
C3580-09-1EA	32mm	26mm	3mm	254mm	35/20	2mm	1个
C3580-03-1EA	17mm	13.4mm	1.8mm	305mm	35/20	2mm	1个
C3580-01-1EA	17mm	13.4mm	1.8mm	203mm	35/20	2mm	1个
C3580-15-1EA	46mm	40mm	3mm	457mm	35/20	2mm	1个
C3580-07-1EA	26mm	20mm	3mm	457mm	35/20	2mm	1个
C3580-14-1EA	46mm	40mm	3mm	305mm	35/20	2mm	1个
C3580-10-1EA	32mm	26mm	3mm	305mm	35/20	2mm	1个
C3580-13-1EA	46mm	40mm	3mm	254mm	35/20	2mm	1个
C3580-05-1EA	26mm	20mm	3mm	254mm	24/40	2mm	1个
C3580-04-1EA	26mm	20mm	3mm	203mm	35/20	2mm	1个
C3580-11-1EA	32mm	26mm	3mm	457mm	35/20	2mm	1个
C3580-06-1EA	26mm	20mm	3mm	305mm	35/20	2mm	1个
C3580-02-1EA	17mm	13.4mm	1.8mm	254mm	35/20	2mm	1个
C3580-12-1EA	46mm	40mm	3mm	203mm	35/20	2mm	1个
C3580-08-1EA	32mm	26mm	3mm	203mm	35/20	2mm	1个

General purpose flash chromatography columns with PTFE stopcock and spherical joint,with pinch clamp for a quick and tight connection under pressure,when quick separations of chromatography columns.The coarse porosity fritted disc supports packing material.
● Material:Borosilicate glass
● Color:Clear
● With coarse porosity fritted disc
● Columns have a top spherical joint and a fluoropolymer resin stopcock plug at the bottom
● Spherical joint advantages: easy removal,high flexibility, good sealing,can be used for multi-angle reverse
● Accessory:A3541-03 Accessories for Chromatography Columns with Spherical Joint;A3505-01 Accessories for Vacuum Adapters with PTFE Stopcock

TITLE	O.D	I.D	Wall thickness	Effective Length	Joint No	Bore Size	Package
C3580-09-1EA	32mm	26mm	3mm	254mm	35/20	2mm	1 Piece
C3580-03-1EA	17mm	13.4mm	1.8mm	305mm	35/20	2mm	1 Piece
C3580-01-1EA	17mm	13.4mm	1.8mm	203mm	35/20	2mm	1 Piece
C3580-15-1EA	46mm	40mm	3mm	457mm	35/20	2mm	1 Piece
C3580-07-1EA	26mm	20mm	3mm	457mm	35/20	2mm	1 Piece
C3580-14-1EA	46mm	40mm	3mm	305mm	35/20	2mm	1 Piece
C3580-10-1EA	32mm	26mm	3mm	305mm	35/20	2mm	1 Piece
C3580-13-1EA	46mm	40mm	3mm	254mm	35/20	2mm	1 Piece
C3580-05-1EA	26mm	20mm	3mm	254mm	24/40	2mm	1 Piece
C3580-04-1EA	26mm	20mm	3mm	203mm	35/20	2mm	1 Piece
C3580-11-1EA	32mm	26mm	3mm	457mm	35/20	2mm	1 Piece
C3580-06-1EA	26mm	20mm	3mm	305mm	35/20	2mm	1 Piece
C3580-02-1EA	17mm	13.4mm	1.8mm	254mm	35/20	2mm	1 Piece
C3580-12-1EA	46mm	40mm	3mm	203mm	35/20	2mm	1 Piece
C3580-08-1EA	32mm	26mm	3mm	203mm	35/20	2mm	1 Piece
