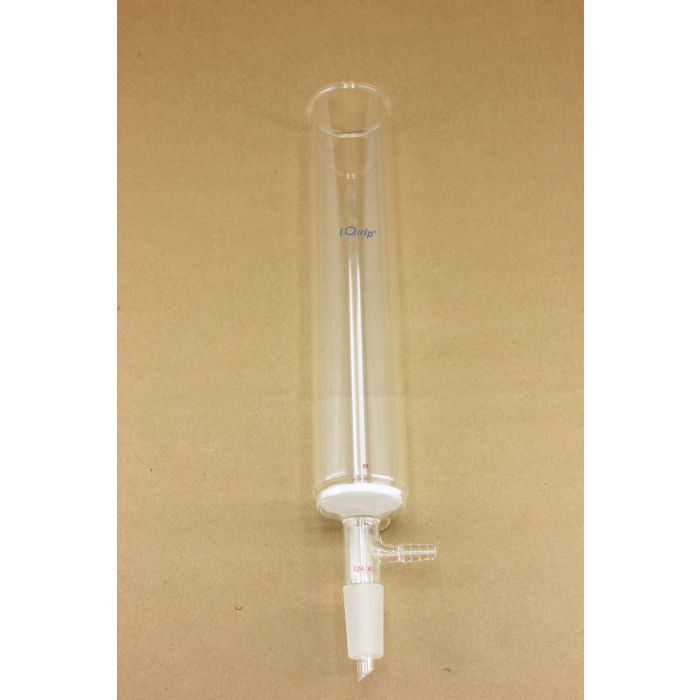

本品系国外普遍适用的减压闪式层析柱,厚壁设计以提高加压时的安全性,砂板下的死体积被控制到最小,以防止分离出的液体二次混合.短的层析柱,下端为24/40外磨口,右端小咀用于抽真空.柱子的长度是指从柱子的砂板的顶端算起.
● 材质:高硼硅玻璃
● 颜色:透明
● 带有砂板以及抽真空小咀
● 层析柱在其底部有一标准磨口
● 砂板孔隙度G2(Coarse)的砂板,孔径为10-15μm,用于滤除粗沉淀及气体洗涤
● 砂板孔隙度G3(Medium)的砂板,孔径为4.5-9μm,用于滤除细沉淀,过滤水银

货号	品名	外径	长度	砂板	包装
C3626-F300mm-1EA	C3626-F300mm 减压层析柱,带24/40外磨口	90mm	300mm	G3	1个
C3626-F400mm-1EA	C3626-F400mm 减压层析柱,带24/40外磨口	90mm	400mm	G3	1个
C3626-E400mm-1EA	C3626-E400mm 减压层析柱,带24/40外磨口	60mm	400mm	G2	1个
C3626-B400mm-1EA	C3626-B400mm 减压层析柱,带24/40外磨口	60mm	400mm	G3	1个
C3626-B200mm-1EA	C3626-B200mm 减压层析柱,带24/40外磨口	60mm	200mm	G3	1个
C3626-A300mm-1EA	C3626-A300mm 减压层析柱,带24/40外磨口	90mm	300mm	G2	1个
C3626-E300mm-1EA	C3626-E300mm 减压层析柱,带24/40外磨口	60mm	300mm	G2	1个
C3626-D200mm-1EA	C3626-D200mm 减压层析柱,带24/40外磨口	40mm	200mm	G3	1个
C3626-C300mm-1EA	C3626-C300mm 减压层析柱,带24/40外磨口	40mm	300mm	G2	1个
C3626-C200mm-1EA	C3626-C200mm 减压层析柱,带24/40外磨口	40mm	200mm	G2	1个
C3626-E200mm-1EA	C3626-E200mm 减压层析柱,带24/40外磨口	60mm	200mm	G2	1个
C3626-A400mm-1EA	C3626-A400mm 减压层析柱,带24/40外磨口	90mm	400mm	G2	1个
C3626-D300mm-1EA	C3626-D300mm 减压层析柱,带24/40外磨口	40mm	300mm	G3	1个
C3626-B300mm-1EA	C3626-B300mm 减压层析柱,带24/40外磨口	60mm	300mm	G3	1个

技术文档

📋 安全数据表 (SDS)

全面的危险、操作、储存及法规合规文件。

下载 SDS →

✅ 分析证书 (COA)

批次质量数据。输入批号以获取对应 COA。

查询 COA →

📊 产品数据表

产品规格和应用的快速参考摘要。

查看数据表 →

🔬 规格说明书

该级别的完整质量属性和验收标准。

查看规格说明 →

高级数据

一般描述

货号	品名	外径	长度	砂板	包装
C3626-F300mm-1EA	C3626-F300mm 减压层析柱,带24/40外磨口	90mm	300mm	G3	1个
C3626-F400mm-1EA	C3626-F400mm 减压层析柱,带24/40外磨口	90mm	400mm	G3	1个
C3626-E400mm-1EA	C3626-E400mm 减压层析柱,带24/40外磨口	60mm	400mm	G2	1个
C3626-B400mm-1EA	C3626-B400mm 减压层析柱,带24/40外磨口	60mm	400mm	G3	1个
C3626-B200mm-1EA	C3626-B200mm 减压层析柱,带24/40外磨口	60mm	200mm	G3	1个
C3626-A300mm-1EA	C3626-A300mm 减压层析柱,带24/40外磨口	90mm	300mm	G2	1个
C3626-E300mm-1EA	C3626-E300mm 减压层析柱,带24/40外磨口	60mm	300mm	G2	1个
C3626-D200mm-1EA	C3626-D200mm 减压层析柱,带24/40外磨口	40mm	200mm	G3	1个
C3626-C300mm-1EA	C3626-C300mm 减压层析柱,带24/40外磨口	40mm	300mm	G2	1个
C3626-C200mm-1EA	C3626-C200mm 减压层析柱,带24/40外磨口	40mm	200mm	G2	1个
C3626-E200mm-1EA	C3626-E200mm 减压层析柱,带24/40外磨口	60mm	200mm	G2	1个
C3626-A400mm-1EA	C3626-A400mm 减压层析柱,带24/40外磨口	90mm	400mm	G2	1个
C3626-D300mm-1EA	C3626-D300mm 减压层析柱,带24/40外磨口	40mm	300mm	G3	1个
C3626-B300mm-1EA	C3626-B300mm 减压层析柱,带24/40外磨口	60mm	300mm	G3	1个

Short chromatography columns with bottom inner [ST]24/40 joint and hose connection for vacuum.Column length is measured from top of column to fritted disc.
● Material:Borosilicate glass
● Color:Clear
● With coarse porosity fritted disc and hose connection for vacuum
● Columns have a standard taper joint at the bottom
● Porosity Coarse(G2) whose disc diameter is 10-15μm,is used for filtering coarse precipitate and gas washing
● Porosity Medium(G3) whose disc diameter is 4.5-9μm,is used for filtering fine precipitation or mercury

TITLE	O.D.	Overall Length	Fritted disc	Package
C3626-F300mm-1EA	90mm	300mm	G3	1 Piece
C3626-F400mm-1EA	90mm	400mm	G3	1 Piece
C3626-E400mm-1EA	60mm	400mm	G2	1 Piece
C3626-B400mm-1EA	60mm	400mm	G3	1 Piece
C3626-B200mm-1EA	60mm	200mm	G3	1 Piece
C3626-A300mm-1EA	90mm	300mm	G2	1 Piece
C3626-E300mm-1EA	60mm	300mm	G2	1 Piece
C3626-D200mm-1EA	40mm	200mm	G3	1 Piece
C3626-C300mm-1EA	40mm	300mm	G2	1 Piece
C3626-C200mm-1EA	40mm	200mm	G2	1 Piece
C3626-E200mm-1EA	60mm	200mm	G2	1 Piece
C3626-A400mm-1EA	90mm	400mm	G2	1 Piece
C3626-D300mm-1EA	40mm	300mm	G3	1 Piece
C3626-B300mm-1EA	60mm	300mm	G3	1 Piece
