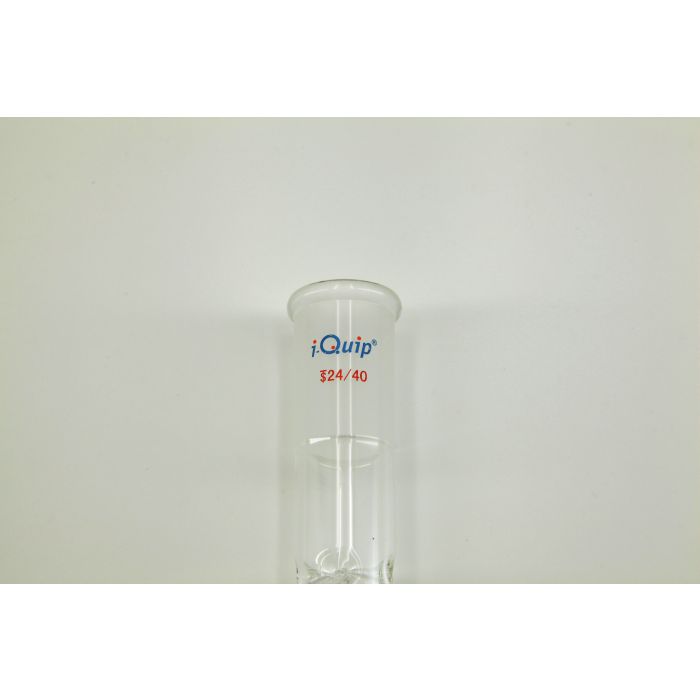

垂刺分馏柱每隔一段距离就有一组向下倾斜的刺状物,且各组刺状物间呈螺旋状排列.蒸馏柱适合于高沸点物质的真空蒸馏.其有效长度为最上面的垂直刺与最下面垂直刺的距离.
● 材质:高硼硅玻璃
● 颜色:透明
● 在顶端处带有外侧的接头,底端内连接头
● 垂刺分布在分馏柱的整个长度上,有助于汽液的接触
● 适合分离少量且沸点差距较大的液体

规格和参数

货号	品名	上磨口	下磨口	垂刺长度	包装
D3413-B120mm-1EA	垂刺分馏柱	19/22	19/22	120mm	1个
D3413-C150mm-1EA	垂刺分馏柱	24/40	24/40	150mm	1个
D3413-C120mm-1EA	垂刺分馏柱	24/40	24/40	120mm	1个
D3413-C200mm-1EA	垂刺分馏柱	24/40	24/40	200mm	1个
D3413-C300mm-1EA	垂刺分馏柱	24/40	24/40	300mm	1个
D3413-A100mm-1EA	垂刺分馏柱	14/20	14/20	100mm	1个
D3413-A75mm-1EA	垂刺分馏柱	14/20	14/20	75mm	1个

技术文档

📋 安全数据表 (SDS)

全面的危险、操作、储存及法规合规文件。

下载 SDS →

✅ 分析证书 (COA)

批次质量数据。输入批号以获取对应 COA。

查询 COA →

📊 产品数据表

产品规格和应用的快速参考摘要。

查看数据表 →

🔬 规格说明书

该级别的完整质量属性和验收标准。

查看规格说明 →

高级数据

一般描述

规格和参数

货号	品名	上磨口	下磨口	垂刺长度	包装
D3413-B120mm-1EA	垂刺分馏柱	19/22	19/22	120mm	1个
D3413-C150mm-1EA	垂刺分馏柱	24/40	24/40	150mm	1个
D3413-C120mm-1EA	垂刺分馏柱	24/40	24/40	120mm	1个
D3413-C200mm-1EA	垂刺分馏柱	24/40	24/40	200mm	1个
D3413-C300mm-1EA	垂刺分馏柱	24/40	24/40	300mm	1个
D3413-A100mm-1EA	垂刺分馏柱	14/20	14/20	100mm	1个
D3413-A75mm-1EA	垂刺分馏柱	14/20	14/20	75mm	1个

At some distance there was a group of downwardly sloping stab and each group stab was spirally arranged.Vigreux columm for vacuum distillation of high boiling materials.Column length is measured from the highest to lowest indent in the column.
● Material:Borosilicate glass
● Color:Clear
● With Outer joint at top,ground inner joint at bottom
● Vigreux distilling column with indentations over the entire length for improved vapor-liquid contact
● Suitable for separating small amount of liquid and boiling point of big gap

Specifications and parameters

TITLE	Top joint size	Below joint size	Indentation Length
D3413-B120mm-1EA	19/22	19/22	120mm
D3413-C150mm-1EA	24/40	24/40	150mm
D3413-C120mm-1EA	24/40	24/40	120mm
D3413-C200mm-1EA	24/40	24/40	200mm
D3413-C300mm-1EA	24/40	24/40	300mm
D3413-A100mm-1EA	14/20	14/20	100mm
D3413-A75mm-1EA	14/20	14/20	75mm
