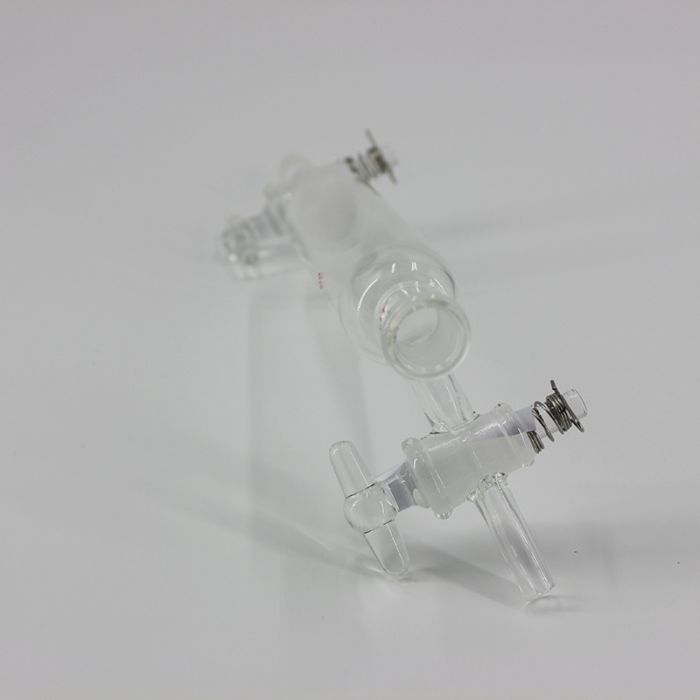

上端节门可加压或通入氮气,过滤器配有两个2mm的玻璃活塞,适用于粗糙的或中等孔隙率.
● 材质:高硼硅玻璃
● 颜色:透明
● 带有2个标准玻璃节门塞
● 砂板孔隙度C:砂板孔径为20-35μm
● 砂板孔隙度为M:砂板孔径为10-20μm
● 磨口尺寸24/40:24指的是磨口直径,40指的是磨口高度,其他规格以此类推
● 配件:A3512-2mm 2mm玻璃节门;A3525-01 可替换的2mm玻璃节门尾端不锈钢弹簧及卡子

规格和参数

货号	磨口	砂板规格	孔隙度	容积
F3570-02-1EA	14/20	30mm	M(G3)	60ml
F3570-04-1EA	24/40	30mm	M(G3)	60ml
F3570-01-1EA	14/20	30mm	C(G2)	60ml
F3570-03-1EA	24/40	30mm	C(G2)	60ml

技术文档

📋 安全数据表 (SDS)

全面的危险、操作、储存及法规合规文件。

下载 SDS →

✅ 分析证书 (COA)

批次质量数据。输入批号以获取对应 COA。

查询 COA →

📊 产品数据表

产品规格和应用的快速参考摘要。

查看数据表 →

🔬 规格说明书

该级别的完整质量属性和验收标准。

查看规格说明 →

高级数据

一般描述

规格和参数

货号	磨口	砂板规格	孔隙度	容积
F3570-02-1EA	14/20	30mm	M(G3)	60ml
F3570-04-1EA	24/40	30mm	M(G3)	60ml
F3570-01-1EA	14/20	30mm	C(G2)	60ml
F3570-03-1EA	24/40	30mm	C(G2)	60ml

Upper stopcocks can be pressurized or lead to nitrogen gas.Funnels feature two 2mm glass stopcocks. Available with coarse or medium porosity.
● Material:Borosilicate Glass
● Color:Clear
● With two 2mm glass stopcocks
● Porosity C:fritted disc diameter 20~35μm
● PorosityM:fritted disc diameter 10~20μm
● Joint size 24/40:24 refers to joint diameter,40 refers to joint height,other specifications and so forth
● For replacement:A3512-2mm Replacement Glass Plug,1:10 Glass Bore;A3525-01 Replacement 2 mm Glass Plug;Replacement Stainless Steel Retention Kit for Glass Stopcocks

Specifications and parameters

TITLE	Joint No	Frit O.D	Porosity	Capacity
F3570-02-1EA	14/20	30mm	M(G3)	60ml
F3570-04-1EA	24/40	30mm	M(G3)	60ml
F3570-01-1EA	14/20	30mm	C(G2)	60ml
F3570-03-1EA	24/40	30mm	C(G2)	60ml
