货号	品名	磨口	外径	砂板孔隙度	包装
F3666-04-1EA	具砂板过滤管	14/20	30 mm	G3	1个
F3666-03-1EA	具砂板过滤管	14/20	30 mm	G2	1个
F3666-02-1EA	具砂板过滤管	14/20	26mm	G3	1个
F3666-01-1EA	具砂板过滤管	14/20	20mm	G2	1个
F3666-07-1EA	具砂板过滤管	14/20	34mm	G3	1个
F3666-08-1EA	具砂板过滤管	14/20	34mm	G2	1个
F3666-09-1EA	具砂板过滤管	14/20	25.5mm	G3	1个
F3666-10-1EA	具砂板过滤管	24/40	45mm	G2	1个
F3666-11-1EA	具砂板过滤管	24/40	45.4mm	G3	1个
F3666-12-1EA	具砂板过滤管	14/20	26mm	G2	1个

技术文档

📋 安全数据表 (SDS)

全面的危险、操作、储存及法规合规文件。

下载 SDS →

✅ 分析证书 (COA)

批次质量数据。输入批号以获取对应 COA。

查询 COA →

📊 产品数据表

产品规格和应用的快速参考摘要。

查看数据表 →

🔬 规格说明书

该级别的完整质量属性和验收标准。

查看规格说明 →

高级数据

一般描述

规格和参数

货号	品名	磨口	外径	砂板孔隙度	包装
F3666-04-1EA	具砂板过滤管	14/20	30 mm	G3	1个
F3666-03-1EA	具砂板过滤管	14/20	30 mm	G2	1个
F3666-02-1EA	具砂板过滤管	14/20	26mm	G3	1个
F3666-01-1EA	具砂板过滤管	14/20	20mm	G2	1个
F3666-07-1EA	具砂板过滤管	14/20	34mm	G3	1个
F3666-08-1EA	具砂板过滤管	14/20	34mm	G2	1个
F3666-09-1EA	具砂板过滤管	14/20	25.5mm	G3	1个
F3666-10-1EA	具砂板过滤管	24/40	45mm	G2	1个
F3666-11-1EA	具砂板过滤管	24/40	45.4mm	G3	1个
F3666-12-1EA	具砂板过滤管	14/20	26mm	G2	1个

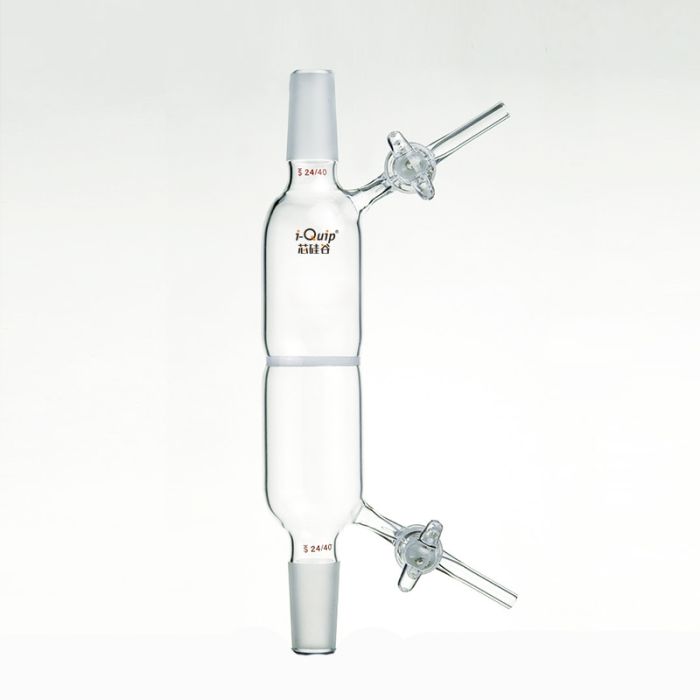

Filter tubes are available with a choice of coarse or medium porosity fritted discs. Tubes are also available with two 2mm glass stopcocks that function as constant pressure retention devices.Used for anhydrous,anaerobic operation, through 180 ° rotation to achieve the results of separation.
● Fabricated from borosilicate glass
● Filter Tubes with Fritted Discs and two 2mm glass stopcocks
● With a standard ground joint at top and bottom
● For replacement:Replacement 2 mm Glass Stopcocks; Replacement Stainless Steel Retention Kit for Glass Stopcocks

Specifications and parameters

TITLE	Joint No	Frit O.D	Porosity
F3666-04-1EA	14/20	30 mm	G3
F3666-03-1EA	14/20	30 mm	G2
F3666-02-1EA	14/20	26mm	G3
F3666-01-1EA	14/20	20mm	G2
F3666-07-1EA	14/20	34mm	G3
F3666-08-1EA	14/20	34mm	G2
F3666-09-1EA	14/20	25.5mm	G3
F3666-10-1EA	24/40	45mm	G2
F3666-11-1EA	24/40	45.5mm	G3
F3666-12-1EA	14/20	26mm	G2
