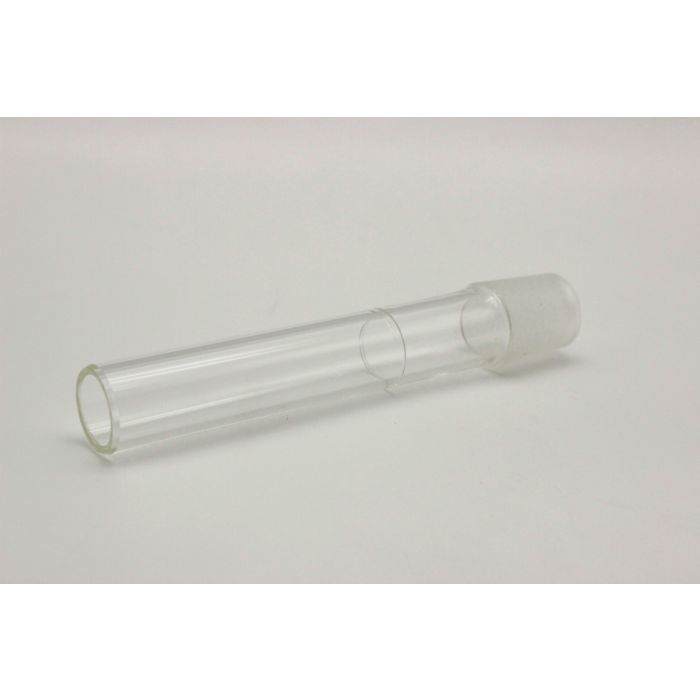

用于气体扩散作用.导管外径为8mm,长为250mm.
● 材质:高硼硅玻璃
● 颜色:透明
● 导气管与砂板所成的角度近似为15°
● 用于气体在液体中的分开或擦洗
● 砂板孔隙度G1,砂板孔径为100-200μm
● 砂板孔隙度G2,砂板孔径为20-35μm
● 砂板孔隙度G3,砂板孔径为10-20μm

规格和参数

货号	品名	砂板直径	容器开口端尺寸	砂板孔隙度	导管外径	长	包装
G3167-M40mm-1EA	具砂板导气管,15°角	40mm	45mm	G3	8mm	250mm	1个
G3167-X30mm-1EA	具砂板导气管,15°角	30mm	35mm	G1	8mm	250mm	1个
G3167-C20mm-1EA	具砂板导气管,15°角	20mm	25mm	G2	8mm	250mm	1个
G3167-M20mm-1EA	具砂板导气管,15°角	20mm	25mm	G3	8mm	250mm	1个
G3167-X40mm-1EA	具砂板导气管,15°角	40mm	45mm	G1	8mm	250mm	1个

技术文档

📋 安全数据表 (SDS)

全面的危险、操作、储存及法规合规文件。

下载 SDS →

✅ 分析证书 (COA)

批次质量数据。输入批号以获取对应 COA。

查询 COA →

📊 产品数据表

产品规格和应用的快速参考摘要。

查看数据表 →

🔬 规格说明书

该级别的完整质量属性和验收标准。

查看规格说明 →

高级数据

一般描述

规格和参数

货号	品名	砂板直径	容器开口端尺寸	砂板孔隙度	导管外径	长	包装
G3167-M40mm-1EA	具砂板导气管,15°角	40mm	45mm	G3	8mm	250mm	1个
G3167-X30mm-1EA	具砂板导气管,15°角	30mm	35mm	G1	8mm	250mm	1个
G3167-C20mm-1EA	具砂板导气管,15°角	20mm	25mm	G2	8mm	250mm	1个
G3167-M20mm-1EA	具砂板导气管,15°角	20mm	25mm	G3	8mm	250mm	1个
G3167-X40mm-1EA	具砂板导气管,15°角	40mm	45mm	G1	8mm	250mm	1个

For gas diffusion.Tube stem O.D. is 8mm.Stem length is 250mm.
● Material:Borosilicate glass
● Color:Clear
● Glass gas dispersion tubes have a coarse porosity fritted disc at an angle of approximately 15°
● Used to disperse or scrub gas in liquids
● Material:Borosilicate glass
● Color:Clear
● Gas scrubbing or dispersing in liquids
● Extra Coarse(G1):disc diameter is 100-200μm
● Porosity Coarse(G2):disc diameter is 20-35μm
● Porosity Medium(G3):disc diameter is 10-20μm

Specifications and parameters

Item No.	Disc Diameter	Required Opening	Porosity	Tube stem O.D.	length	Package
G3167-M40mm-1EA	40mm	45mm	G3	8mm	250mm	1 piece
G3167-X30mm-1EA	30mm	35mm	G1	8mm	250mm	1 piece
G3167-C20mm-1EA	20mm	25mm	G2	8mm	250mm	1 piece
G3167-M20mm-1EA	20mm	25mm	G3	8mm	250mm	1 piece
G3167-X40mm-1EA	40mm	45mm	G1	8mm	250mm	1 piece
