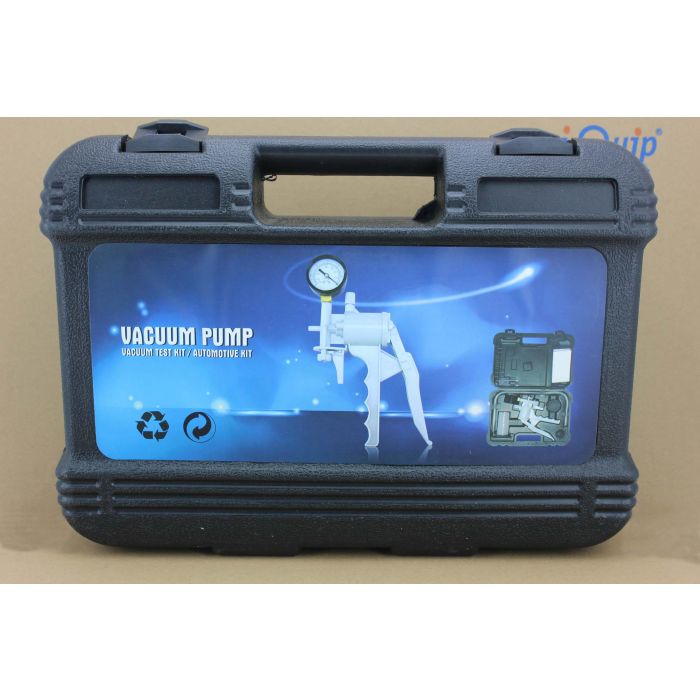

手动真空泵工具包可以用于汽车调试、机械测试和个人制动器放气.这套组件包括手真空泵,真空计和配件.配件包括许多接头和管子.标准化配置包含一个真空管,真空计,制动液储层和管接头.
● 材质:塑料
● 颜色:灰白色
● 全塑的真空泵缸体、盖及手柄
● 可更换的缸盖密封环,橡胶活塞环和阀
● 精确的真空测试表,量程0-760mmHg
● 配有制动液集液装置有多种接头,可满足不同需要
● 有可用虹吸液的软管设计有释放阀,可产生负压,最高可达635mmHg
● 详细规格： (1)塑料缸手动真空泵,带有直径为50毫米的真空测试表 (2)120毫升流体储层流体传输和存储的瓶子和盖子 (3)锥形排气螺丝适配器 (4)通用排气螺丝适配器 (5)连接管:内径×长度:6.4×610mm 连接管:内径×长度:6.4×80mm 连接管:内径×长度:6.4×90mm (6)橡胶杯形的适配器 (7)用户手册(英语/法语/西班牙语)

技术文档

📋 安全数据表 (SDS)

全面的危险、操作、储存及法规合规文件。

下载 SDS →

✅ 分析证书 (COA)

批次质量数据。输入批号以获取对应 COA。

查询 COA →

📊 产品数据表

产品规格和应用的快速参考摘要。

查看数据表 →

🔬 规格说明书

该级别的完整质量属性和验收标准。

查看规格说明 →

高级数据

一般描述

规格：材质:塑料;颜色:灰白色;最大真空度:635mmHg(85kPa);真空测试表量程:0-760mmHg(0-100Kpa);包装类型:高强度手提塑料外箱

Specification: Material:Plastic;Color:Gray;Max.Vacuum:25 in.Hg(85kPa);Gauge Indication:0-30 in.Hg(0-100kPa);Packing Type:Blow Mold Case

Widely used in auto repair,leak tests,experiments,vacuum packaging and so on.The hand vacuum pump kit contains hand vacuum pump with vacuum gauge and accessories.Many brake bleeder joints and tubes are included.The standardized configuration contains a vacuum tube,a vacuum meter,a brake fluid reservoir and pipe joints
● Materrial:Plastic
● Color:Gray
● Replaceable cylinder head O-rings,rubber piston ring and valves
● Precise pressure gauge:0-760mmHg
● The solid metal handle is equipped with brake fluid liquid collecting device has various joints,can satisfy different needs
● We have used the rainbow suction hose design release valve,negative pressure can be generated,up to 635mmHg
● Include the parts of brake bleeder,easily bleed brakes by yourself
● Detailed specification: (1)Plastic cylinder hand vacuum pump with 50mm diameter gauge (2)120ml fluid reservoir bottle with fluid transfer and storage lids (3)Tapered Bleed screw adapters (4)Universal Bleed screw adapters (5)6.4mm ID×610mm long connection tubes 6.4mm ID×80mm long connection tube 6.4mm ID×90mm long connection tube (6)Rubber cupped adapter (7)User manual (English/French/Spanish)
