氯离子

CAS: 2253663-81-7 货号: I486923 分子式: C94H78Cl4N4O2S4 分子量: 1565.72
有货
储存条件
室温
★
规格
库存
价格
数量
100mg
I486923-100mg
期货 Stock Image
¥3,600.90
请输入您要添加的产品数量

概述


Description

ITCI-CI is a low band acceptor-donor-acceptor molecule with indacenodithieno[3,2‐b]thiophene (IT) as a central donor atom and 2‐(3‐oxo‐2,3‐dihydroinden‐1‐ylidene)malononitrile (IC) as an acceptor end group. It is also a non-fullerene electron acceptor with a push-pull structure that induces an intramolecular charge transfer and extends absorption.ITCI-CI can be mainly used in the fabrication of polymeric solar cells with an efficiency that is less than 11% and excellent thermal stability.ITIC-Cl is a novel non-fullerene acceptor material designed to use in organic photovoltaic devices.ITIC-Cl is a derivative of the ITIC molecule, which is increasingly used to replace fullerene based derivatives for organic solar cells due to significantly improved performances and stability.Compared to ITIC and its other derivatives such as ITIC-F, ITIC-Cl has a narrower bandgap and lower energy levels, and thus will be more suitable to pair with various p-type polymers.ITIC-Cl is readily soluble in most organic solvents used to fabricate organic electronic devices.

规格

英文别名
ITIC-2Cl, 3,9-bis(2-methylene-((3-(1,1-dicyanomethylene)-6,7-dichloro)-indanone))-5,5,11,11-tetrakis(4-hexylphenyl)-dithieno[2,3-d:2′,3′-d′]-s-indaceno[1,2-b:5,6-b′]dithiophene
英文名称
ITIC-Cl
储存条件
室温
名称和识别符
分子类型
小分子
IUPAC Name

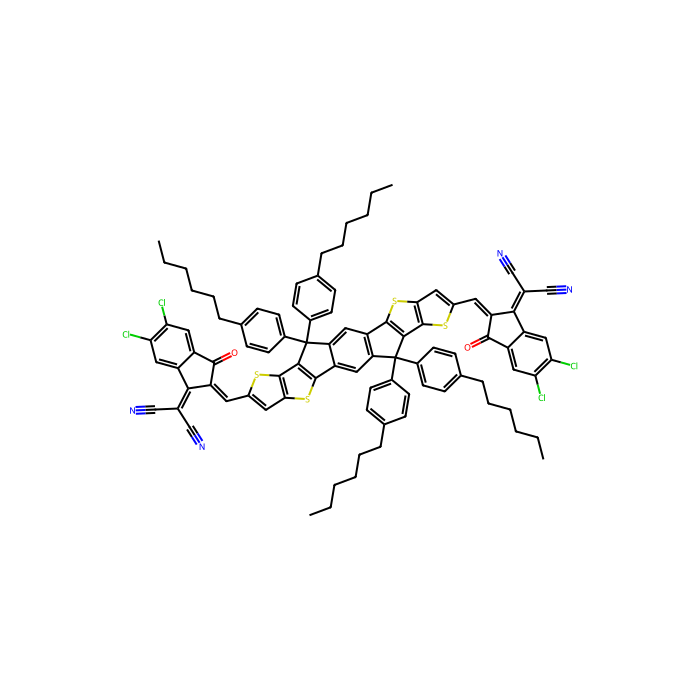

2-[(2E)-5,6-dichloro-2-[[20-[(E)-[5,6-dichloro-1-(dicyanomethylidene)-3-oxoinden-2-ylidene]methyl]-12,12,24,24-tetrakis(4-hexylphenyl)-5,9,17,21-tetrathiaheptacyclo[13.9.0.03,13.04,11.06,10.016,23.018,22]tetracosa-1(15),2,4(11),6(10),7,13,16(23),18(22),19-nonaen-8-yl]methylidene]-3-oxoinden-1-ylidene]propanedinitrile
InChI
1S/C94H78Cl4N4O2S4/c1-5-9-13-17-21-55-25-33-61(34-26-55)93(62-35-27-56(28-36-62)22-18-14-10-6-2)75-45-72-76(46-71(75)89-85(93)91-81(107-89)43-65(105-91)41-73-83(59(51-99)52-100)67-47-77(95)79(97)49-69(67)87(73)103)94(63-37-29-57(30-38-63)23-19-15-11-7-3,64-39-31-58(32-40-64)24-20-16-12-8-4)86-90(72)108-82-44-66(106-92(82)86)42-74-84(60(53-101)54-102)68-48-78(96)80(98)50-70(68)88(74)104/h25-50H,5-24H2,1-4H3/b73-41+,74-42+
InChIKey
CGRWDQBQNINDAH-ZRKFOFFSSA-N
SMILES
CCCCCCC1=CC=C(C=C1)C2(C3=CC4=C(C=C3C5=C2C6=C(S5)C=C(S6)C=C7C(=C(C#N)C#N)C8=CC(=C(C=C8C7=O)Cl)Cl)C(C9=C4SC1=C9SC(=C1)C=C1C(=C(C#N)C#N)C2=CC(=C(C=C2C1=O)Cl)Cl)(C1=CC=C(C=C1)CCCCCC)C1=CC=C(C=C1)CCCCCC)C1=CC=C(C=C1)CCCCCC
分子量
1565.72
Reaxy-Rn
33386473
Reaxys-RN link address
https://www.reaxys.com/reaxys/secured/hopinto.do?context=S&query=IDE.XRN=33386473&ln=

高级数据

化学和物理性质
闪点(℉)
Not applicable
闪点(℃)
Not applicable
安全和危险性(GHS)
质检证书(CoA,COO,BSE/TSE 和分析图谱)
C of A & Other Certificates(BSE/TSE, COO):
输入批号以搜索分析图谱:
溶液计算器
