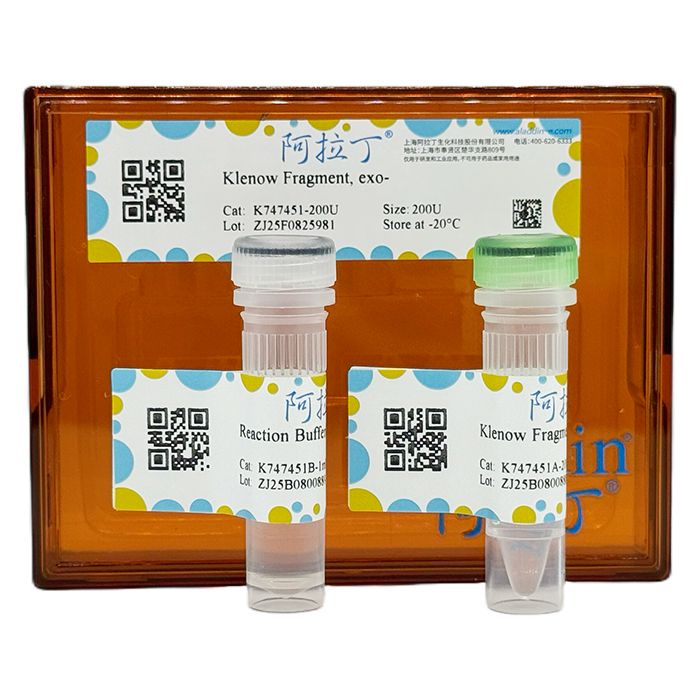

Klenow Fragment, Exo-

货号: K747451
有货
级别和纯度: 无动物源 ? 无动物源(Animal Free)—— 不含动物源成分生产,降低污染风险。适用于避免动物源材料的生物制造和培养。 无载体 ? 无载体(Carrier Free)—— 不含添加的载体蛋白/稳定剂。当载体(如 BSA)会干扰偶联或敏感检测时使用。 生物活性 ? 生物活性级(Bioactive)—— 经验证在功能检测中保持生物活性。当分子须具有功能活性而不仅是纯度时使用。 ActiBioPure™ ? ActiBioPure™ —— 阿拉丁面向生物活性和重组产品的优质系列。当同时需要高纯度和保持生物活性时使用。 EnzymoPure™ ? EnzymoPure™ —— 阿拉丁的高质量酶解决方案系列。当酶纯度和明确活性决定检测或工艺性能时使用。 无菌 ? 无菌级 —— 经处理并验证无活微生物。可直接用于无菌操作和细胞培养,无需再灭菌。 5 U/μL
Accession #
2KFZ_A,P00582
表达系统
E. coli
生物活性
One unit is the amount of enzyme required to catalyze the incorporation of 10nmol of deoxyribonucleotides (dNTPs) into a polynucleotide within 30 minutes at 37℃.
★
规格
库存
价格
数量
200U
K747451-200U
现货 Stock Image
¥209.90
1KU
K747451-1KU
现货 Stock Image
¥759.90
5×1KU
K747451-5×1KU
现货 Stock Image
¥2,909.90
请输入您要添加的产品数量

概述

本公司生产的 Klenow Fragment, Exo-,即没有外切酶活性的 Klenow 片段,是大肠杆菌聚合酶 I (E.coli. DNA polymerase I)的大片段(Large Fragment)缺失了外切酶活性的突变体。Klenow Fragment, Exo-保留了 DNA 聚合酶 I 的 5'→3'聚合酶活性,但缺少完整的 Klenow 酶的 5'→3' 和 3'→5'外切酶活性。

组分和说明

K747451Component200U 1KU5×1KUStorage
K747451AKlenow Fragment, Exo- (5 U/µl) 40μl200μl5×200μl-20℃. Avoid freeze/thaw cycle.
K747451BReaction Buffer(10×)200μl1ml5×1ml-20℃. Avoid freeze/thaw cycle.

产品应用

 5'突出末端的标记;随机引物法进行 DNA 标记;Sanger 双脱氧法进行 DNA 测序等。

产品优势

由于 Klenow Fragment, Exo-没有外切酶活性,其在末端补平时经常会在 3'末端额外加上 1 个或多个核苷酸,因此不能用于产生平末端而用于后 续的连接。

使用说明

1.随机引物法进行 DNA 标记:

 a.参考如下表格设置反应体系:

Reagent Volume
DNA 10µl (100ng)
Reaction Buffer (10×) 5µl
125µM random decamer or hexamer primer 10µl
补充无核酸酶的去离子水 至 40µl
混匀后沸水浴孵育 5-10 分钟,立即置于冰浴冷却。进行后续步骤前离心沉淀液
3 dNTP Mixture (0.25mM each , without the labeled dNTP) 4µl
[α-32P]-dNTP, ~110 TBq/mmol (3000Ci/mmol) 1.85MBq (50µCi)
Klenow Fragment, Exo- 1µl (5U)
补充无核酸酶的去离子水 至 50µl

b.按上表设置好反应体系后,轻轻混匀(可以用移液器吹打混匀或用 Vortex 在最低速度轻轻混匀),随后离心沉淀液体。

 c.对于 random decamer primer,37℃孵育 5 分钟;对于 random hexamer primer,37℃孵育 10 分钟。

d.加入 4µl 0.25mM dNTP,混匀后 37℃孵育 5 分钟。

e.加入 1µl 0.5M EDTA,pH8.0 终止反应。

f.取 1µl 上述液体用于检测标记的效率。

g.用 Sephadex G-50 或 Bio-Gel P-60 或其它适当试剂盒纯化标记好的探针。

2.双链 DNA 5'突出(5' overhang)末端的标记:

 a.参考如下表格设置反应体系:

Reagent Volume
Digested DNA 10~15µl (0.1~4µg)
Reaction Buffer (10×) 2µl
[α-32P]-dNTP, ~15-30 TBq/mmol(400-800Ci/mmol) 0.74 MBq (20µCi)
或 [α-32P]-dNTP, ~110 TBq/mmol(3000Ci/mmol) 2.96 MBq (80µCi)
3 dNTP Mixture (2.5mM each , without the labeled dNTP) 2µl
Klenow Fragment, Exo- 0.2µl (1U)
补充无核酸酶的去离子水 至 20µl

b.按上述体系配好之后,轻轻混匀(可以用移液器吹打混匀或用 Vortex 在最低速度轻轻混匀),随后离心沉淀液体。

 c.30℃孵育 15 分钟。

d.75℃孵育 10 分钟终止反应。

 3.双链 DNA 5'突出末端的补平:

 a.对于双链 DNA 5'突出(5' overhang)末端的补平,参考下表在冰浴中配制如下反应体系。

Reagent Volume Final Concentration
Nuclease-Free Water (16.6-x)µl  -
dsDNA with 5’ Overhang xµl ~0.5µM or 5-200ng/µl
Reaction Buffer (10×) 2µl 1×
dNTP Mix (2.5mM each) 0.4µl 50µM
Klenow Fragment, Exo- (5U/µl) 1µl 0.25U/µl
Total Volume 20µl  -

注 1:按上表设置好反应体系后,轻轻混匀(可以用移液器吹打混匀或用 Vortex 在最低速度轻轻混匀),随后离心沉淀液体;如果同时进 行多个反应,可以把上表中除 dsDNA with 5’ overhang 之外的所有溶液和酶提前混合,分装到各反应管,最后再加入 dsDNA with 5’ overhang。

注2:dsDNA with 5’ Overhang如果是寡核苷酸,最终浓度可以约为0.5µM,如果是消化后的DNA质粒等最终浓度可以约为 5-200ng/µl。

b.37℃孵育 10 分钟。

c.75℃孵育 10 分钟以终止反应。

保存条件: -20℃保存,≤0℃运输

注意事项:

(1)酶使用时宜存放在冰盒内或冰浴上,使用完毕后宜立即放置于-20℃保存。

(2)本产品仅限于专业人员的科学研究用,不得用于临床诊断或治疗,不得用于食品或药品,不得存放于普通住宅内。

(3)为了您的安全和健康,请穿实验服并戴一次性手套操作。


Klenow Fragment, Exo⁻ produced by our company is a mutant of the large fragment of E. coli DNA polymerase I with exonuclease activity deleted. It retains the 5'→3' polymerase activity of DNA polymerase I, but lacks both 5'→3' and 3'→5' exonuclease activities of native Klenow.

Components List

K747451Component200U 1KU5×1KUStorage
K747451AKlenow Fragment, Exo- (5 U/µl) 40μl200μl5×200μl-20℃. Avoid freeze/thaw cycle.
K747451BReaction Buffer(10×)200μl1ml5×1ml-20℃. Avoid freeze/thaw cycle.

Applications

5' overhang end labeling; random primed DNA labeling; Sanger dideoxy DNA sequencing, etc.

Product Advantages

Klenow Fragment, Exo⁻ has no exonuclease activity. It often adds one or more extra nucleotides to the 3' end during end filling, so it cannot be used to generate blunt ends for subsequent ligation.

Instructions for Use

1. Random Primed DNA Labeling

a. Set up reaction system according to the table below:

ReagentVolume
DNA10 μL (100 ng)
Reaction Buffer (10×)5 μL
125 μM random decamer or hexamer primer10 μL
Nuclease-Free Waterto 40 μL
Heat denaturation: boil 5–10 min, chill on ice, spin down—
3 dNTP Mixture (0.25 mM each, without the labeled dNTP)4 μL
[α‑³²P]‑dNTP, ~110 TBq/mmol (3000 Ci/mmol)1.85 MBq (50 μCi)
Klenow Fragment, Exo⁻1 μL (5 U)
Nuclease-Free Waterto 50 μL

b. After setup, mix gently by pipetting or low-speed vortexing, then spin down.

c. Incubate at 37°C for 5 min for random decamer primer; incubate at 37°C for 10 min for random hexamer primer.

d. Add 4 μL 0.25 mM dNTP, mix and incubate at 37°C for 5 min.

e. Quench the reaction by adding 1 μL 0.5 M EDTA (pH 8.0).

f. Take 1 μL aliquot to test labeling efficiency.

g. Purify labeled probe using Sephadex G-50, Bio-Gel P-60 or suitable purification kit.

2. 5' Overhang End Labeling of Double-stranded DNA

a. Set up reaction system according to the table below:

ReagentVolume
Digested DNA10~15 μL (0.1~4 μg)
10× Reaction Buffer2 μL
[α-³²P]-dNTP, ~15–30 TBq/mmol (400–800 Ci/mmol)0.74 MBq (20 μCi)
OR [α-³²P]-dNTP, ~110 TBq/mmol (3000 Ci/mmol)2.96 MBq (80 μCi)
3 dNTP Mixture (2.5 mM each, without labeled dNTP)2 μL
Klenow Fragment, Exo⁻0.2 μL (1 U)
Nuclease-Free Waterto 20 μL

b. Mix gently by pipetting or low-speed vortexing, then spin down.

c. Incubate at 30°C for 15 min.

d. Inactivate enzyme at 75°C for 10 min.

3. Filling-in of 5' Overhangs of Double-stranded DNA

a. For filling-in of 5' overhangs of dsDNA, prepare reaction mix on ice as shown below:

ReagentVolumeFinal Concentration
Nuclease-Free Water(16.6−x) μL—
dsDNA with 5' Overhangx μL~0.5 μM or 5–200 ng/μL
10× Reaction Buffer2 μL1×
dNTP Mix (2.5 mM each)0.4 μL50 μM
Klenow Fragment, Exo⁻ (5 U/μL)1 μL0.25 U/μL
Total Volume20 μL—

Note 1: Mix gently after setup and spin down. For multiple parallel reactions, pre-mix all components except dsDNA with 5' overhang, aliquot into tubes, then add dsDNA template last.

Note 2: For oligonucleotide dsDNA with 5' overhang, final concentration ~0.5 μM; for digested plasmid DNA, final concentration 5–200 ng/μL.

b. Incubate at 37°C for 10 min.

c. Heat inactivate at 75°C for 10 min.

Precautions

(1) Keep the enzyme on ice during use. Return to -20°C storage immediately after use.

(2) For research use only by trained professionals. Not for clinical diagnosis, therapy, food or pharmaceutical applications. Do not store in residential premises.

(3) Wear lab coat and disposable gloves for operation for safety.

规格

产品名称
Klenow Fragment, Exo-
别名
克列诺片段,Exo- | DNA聚合酶I片段突变体
英文别名
DNA polymerase I Fragment Mutant
规格或纯度
无动物源, 无载体, 生物活性, ActiBioPure™, EnzymoPure™, 无菌, 5 U/μL
生物活性
One unit is the amount of enzyme required to catalyze the incorporation of 10nmol of deoxyribonucleotides (dNTPs) into a polynucleotide within 30 minutes at 37℃.
表达系统
E. coli
种属
大肠杆菌(E.coli)
无载体
Yes
无动物源
Yes
来源
重组表达
预测分子量
68 kDa (monomer)
SDS-PAGE
68 kDa (monomer)
分子类型
酶
产品线
生物产品
储存与运输
物理形态
液体
储存缓冲液
25mM Tris-HCl, 0.1mM EDTA, 1mM DTT, 50% (v/v) Glycerol, pH 7.5
浓度
5 U/μL
储存条件
-20°C储存,避免反复冻融
运输条件
超低温运输
稳定性与储存
长期储存-20℃(24个月);避免反复冻融。
单位定义
37℃30分钟内,催化10nmol脱氧核糖核苷酸(dNTPs)摻入到多聚核苷酸中所需的酶量定义为1个活性单位。
