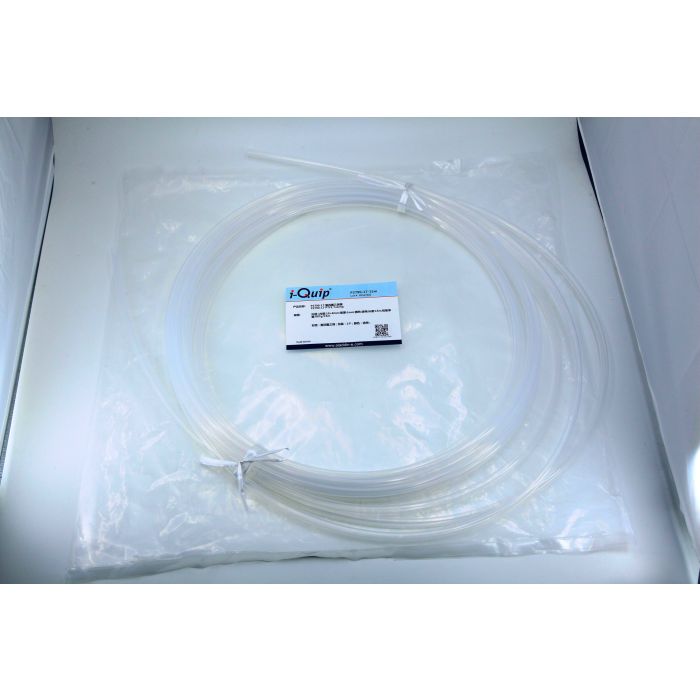

聚四氟乙烯管由聚四氟乙烯树脂制成.因为其在塑胶中耐温最高(260℃),耐电最高(45KV/mm),耐强酸,强碱,最抗粘,最滑溜,耐磨之工程塑胶材料,广泛用于化学,仪器,电热,机械工业.
● 材质:聚四氟乙烯(PTFE)
● 颜色:透明
● 耐强酸,强碱,能耐王水和一切有机溶剂
● 耐高温,长期使用温度200℃～260℃
● 耐低温,在-100℃时仍柔软
● 耐气候,塑料中最佳的老化寿命
● 高润滑,具有塑料中最小的磨擦系数(0.04)
● 不粘性,具有固体材料中最小的表面张力而不粘附任何物质
● 无毒害,具有生理惰性
● 优异的电气性能,是理想的C级绝缘材料
● 输送高温下的强腐蚀性气,液体
规格和参数
| 货号 |
品名 |
外壁×内壁 |
壁厚 |
颜色 |
重量 |
包装 |
| P2790-30-5m |
P2790-30 聚四氟乙烯管 |
23×20mm |
1.5mm |
透明 |
220g/m |
5m |
| P2790-16-5m |
P2790-16 聚四氟乙烯管 |
6×4mm |
1mm |
透明 |
34g/m |
5m |
| P2790-30-15m |
P2790-30 聚四氟乙烯管 |
23×20mm |
1.5mm |
透明 |
220g/m |
15m |
| P2790-24-15m |
P2790-24 聚四氟乙烯管 |
4×3mm |
0.5mm |
透明 |
12g/m |
15m |
| P2790-16-15m |
P2790-16 聚四氟乙烯管 |
6×4mm |
1mm |
透明 |
34g/m |
15m |
| P2790-22-5m |
P2790-22 聚四氟乙烯管 |
18×16mm |
1mm |
透明 |
117g/m |
5m |
| P2790-22-15m |
P2790-22 聚四氟乙烯管 |
18×16mm |
1mm |
透明 |
117g/m |
15m |
| P2790-31-15m |
P2790-31 聚四氟乙烯管 |
25×23mm |
1mm |
透明 |
165g/m |
15m |
| P2790-31-5m |
P2790-31 聚四氟乙烯管 |
25×23mm |
1mm |
透明 |
165g/m |
5m |
| P2790-05-5×15m |
P2790-05 聚四氟乙烯管 |
1.2×0.8mm |
0.2mm |
透明 |
1.5g/m |
5×15m |
| P2790-01-5×15m |
P2790-01 聚四氟乙烯管 |
0.9×0.5mm |
0.2mm |
透明 |
1.1g/m |
5×15m |
| P2790-11-15m |
P2790-11 聚四氟乙烯管 |
2.4×2mm |
0.2mm |
透明 |
3g/m |
15m |
| P2790-20-15m |
P2790-20 聚四氟乙烯管 |
14×12mm |
1mm |
透明 |
90g/m |
15m |
| P2790-10-15m |
P2790-10 聚四氟乙烯管 |
1.9×1.5mm |
0.2mm |
透明 |
2.4g/m |
15m |
| P2790-13-15m |
P2790-13 聚四氟乙烯管 |
2.2×1.8mm |
0.2mm |
透明 |
2.8g/m |
15m |
| P2790-12-15m |
P2790-12 聚四氟乙烯管 |
4×2mm |
1mm |
透明 |
20g/m |
15m |
| P2790-08-15m |
P2790-08 聚四氟乙烯管 |
1.6×1.2mm |
0.2mm |
透明 |
2g/m |
15m |
| P2790-14-15m |
P2790-14 聚四氟乙烯管 |
2.6×1.8mm |
0.4mm |
透明 |
6.1g/m |
15m |
| P2790-21-5m |
P2790-21 聚四氟乙烯管 |
16×14mm |
1mm |
透明 |
103g/m |
5m |
| P2790-21-15m |
P2790-21 聚四氟乙烯管 |
16×14mm |
1mm |
透明 |
103g/m |
15m |
| P2790-23-15m |
P2790-23 聚四氟乙烯管 |
20×18mm |
1mm |
透明 |
131g/m |
15m |
| P2790-15-15m |
P2790-15 聚四氟乙烯管 |
2.9×2.5mm |
0.2mm |
透明 |
3.8g/m |
15m |
| P2790-02-15m |
P2790-02 聚四氟乙烯管 |
1.4×0.5mm |
0.45mm |
透明 |
3g/m |
15m |
| P2790-09-15m |
P2790-09 聚四氟乙烯管 |
2×1.6mm |
0.2mm |
透明 |
2.5g/m |
15m |
| P2790-18-15m |
P2790-18 聚四氟乙烯管 |
8×6mm |
1mm |
透明 |
48g/m |
15m |
| P2790-17-15m |
P2790-17 聚四氟乙烯管 |
10×8mm |
1mm |
透明 |
63g/m |
15m |
| P2790-03-15m |
P2790-03 聚四氟乙烯管 |
1×0.6mm |
0.2mm |
透明 |
1.2g/m |
15m |
| P2790-07-5×15m |
P2790-07 聚四氟乙烯管 |
1.4×1mm |
0.2mm |
透明 |
1.5g/m |
5×15m |
| P2790-02-3×5m |
P2790-02聚四氟乙烯管 |
1.4×0.5mm |
0.45mm |
透明 |
3g/m |
3×5m |
| P2790-08-3×5m |
P2790-08 聚四氟乙烯管 |
1.6×1.2mm |
0.2mm |
透明 |
2g/m |
3×5m |
| P2790-09-3×5m |
P2790-09 聚四氟乙烯管 |
2×1.6mm |
0.2mm |
透明 |
2.5g/m |
3×5m |
| P2790-10-3×5m |
P2790-10 聚四氟乙烯管 |
1.9×1.5mm |
0.2mm |
透明 |
2.4g/m |
3×5m |
| P2790-11-3×5m |
P2790-11 聚四氟乙烯管 |
2.4×2mm |
0.2mm |
透明 |
3g/m |
3×5m |
| P2790-12-5m |
P2790-12 聚四氟乙烯管 |
4×2mm |
1mm |
透明 |
20g/m |
5m |
| P2790-13-3×5m |
P2790-13 聚四氟乙烯管 |
2.2×1.8mm |
0.2mm |
透明 |
2.8g/m |
3×5m |
| P2790-14-3×5m |
P2790-14 聚四氟乙烯管 |
2.6×1.8mm |
0.4mm |
透明 |
6.1g/m |
3×5m |
| P2790-15-3×5m |
P2790-15 聚四氟乙烯管 |
2.9×2.5mm |
0.2mm |
透明 |
3.8g/m |
3×5m |
| P2790-17-5m |
P2790-17聚四氟乙烯管 |
10×8mm |
1mm |
透明 |
63g/m |
5m |
| P2790-18-5m |
P2790-18聚四氟乙烯管 |
8×6mm |
1mm |
透明 |
48g/m |
5m |
| P2790-20-5m |
P2790-20聚四氟乙烯管 |
14×12mm |
1mm |
透明 |
90g/m |
5m |
| P2790-23-5m |
P2790-23聚四氟乙烯管 |
20×18mm |
1mm |
透明 |
131g/m |
5m |
| P2790-24-3×5m |
P2790-24聚四氟乙烯管 |
4×3mm |
0.5mm |
透明 |
12g/m |
3×5m |
| P2790-03-3×15m |
P2790-3聚四氟乙烯管 |
1×0.6mm |
0.2mm |
透明 |
1.2g/m |
3×15m |
|
PTFE tubing is made of PTFE resin.Because it was the highest(260℃) and resistant electric highest(45KV/mm),resistant to acid,alkali,the most anti stick,the most slippery,wear resistant engineering plastic material in the plastic temperature,widely used in chemical,instrument,electric,machinery industry.
● Material:Polytetrafluoroethylene(PTFE)
● Color:Transparent
● The resistance to acid,alkali,aqua regia and all organic solvents.
● Resist to high temperature,can use in the temperature of 200℃～260℃
● The low temperature resistance,still soft at -100℃
● The weather resistance,aging of plastics in the best life
● Have the smallest friction coefficient(0.04) in plastic
● The solid material is not sticky,with minimal surface tension and adhesion of any substance
● No poison,physical inertia
● Excellent electrical performance,is the ideal class C insulation material
● Strong corrosive gas transmission under high temperature,liquid
Specifications and
parameters
| Item No. |
O.D.×I.D. |
Wall Thickness |
Color |
Weight |
Package |
| P2790-30-5m |
23×20mm |
1.5mm |
Clear |
224.46g/m |
5m |
| P2790-16-5m |
6×4mm |
1mm |
Clear |
34.00g/m |
5m |
| P2790-30-15m |
23×20mm |
1.5mm |
Clear |
224.46g/m |
15m |
| P2790-24-15m |
4×3mm |
0.5mm |
Clear |
11.33g/m |
15m |
| P2790-16-15m |
6×4mm |
1mm |
Clear |
34.00g/m |
15m |
| P2790-22-5m |
18×16mm |
1mm |
Clear |
118.32g/m |
5m |
| P2790-22-15m |
18×16mm |
1mm |
Clear |
118.32g/m |
15m |
| P2790-31-15m |
25×23mm |
1mm |
Clear |
167.04g/m |
15m |
| P2790-31-5m |
25×23mm |
1mm |
Clear |
167.04g/m |
5m |
| P2790-05-5×15m |
1.2×0.8mm |
0.2mm |
Clear |
1.47g/m |
5×15m |
| P2790-01-5×15m |
0.9×0.5mm |
0.2mm |
Clear |
1.07g/m |
5×15m |
| P2790-11-15m |
2.4×2mm |
0.2mm |
Clear |
2.93g/m |
15m |
| P2790-20-15m |
14×12mm |
1mm |
Clear |
92.20g/m |
15m |
| P2790-10-15m |
1.9×1.5mm |
0.2mm |
Clear |
2.40g/m |
15m |
| P2790-13-15m |
2.2×1.8mm |
0.2mm |
Clear |
3.07g/m |
15m |
| P2790-12-15m |
4×2mm |
1mm |
Clear |
19.07g/m |
15m |
| P2790-08-15m |
1.6×1.2mm |
0.2mm |
Clear |
2.07g/m |
15m |
| P2790-14-15m |
2.6×1.8mm |
0.4mm |
Clear |
6.07g/m |
15m |
| P2790-21-5m |
16×14mm |
1mm |
Clear |
104.40g/m |
5m |
| P2790-21-15m |
16×14mm |
1mm |
Clear |
104.40g/m |
15m |
| P2790-23-15m |
20×18mm |
1mm |
Clear |
132.24g/m |
15m |
| P2790-15-15m |
2.9×2.5mm |
0.2mm |
Clear |
3.80g/m |
15m |
| P2790-02-15m |
1.4×0.5mm |
0.45mm |
Clear |
3.13g/m |
15m |
| P2790-09-15m |
2×1.6mm |
0.2mm |
Clear |
2.60g/m |
15m |
| P2790-18-15m |
8×6mm |
1mm |
Clear |
47.33g/m |
15m |
| P2790-17-15m |
10×8mm |
1mm |
Clear |
60.47g/m |
15m |
| P2790-03-15m |
1×0.6mm |
0.2mm |
Clear |
1.27g/m |
15m |
| P2790-07-5×15m |
1.4×1mm |
0.2mm |
Clear |
1.80g/m |
5×15m |
| P2790-02-3×5m |
1.4×0.5mm |
0.45mm |
Clear |
3.13g/m |
3×5m |
| P2790-08-3×5m |
1.6×1.2mm |
0.2mm |
Clear |
2.07g/m |
3×5m |
| P2790-09-3×5m |
2×1.6mm |
0.2mm |
Clear |
2.60g/m |
3×5m |
| P2790-10-3×5m |
1.9×1.5mm |
0.2mm |
Clear |
2.40g/m |
3×5m |
| P2790-11-3×5m |
2.4×2mm |
0.2mm |
Clear |
2.93g/m |
3×5m |
| P2790-12-5m |
4×2mm |
1mm |
Clear |
19.07g/m |
5m |
| P2790-13-3×5m |
2.2×1.8mm |
0.2mm |
Clear |
3.07g/m |
3×5m |
| P2790-14-3×5m |
2.6×1.8mm |
0.4mm |
Clear |
6.07g/m |
3×5m |
| P2790-15-3×5m |
2.9×2.5mm |
0.2mm |
Clear |
3.80g/m |
3×5m |
| P2790-17-5m |
10×8mm |
1mm |
Clear |
60.47g/m |
5m |
| P2790-18-5m |
8×6mm |
1mm |
Clear |
47.33g/m |
5m |
| P2790-20-5m |
14×12mm |
1mm |
Clear |
92.20g/m |
5m |
| P2790-23-5m |
20×18mm |
1mm |
Clear |
132.24g/m |
5m |
| P2790-24-3×5m |
4×3mm |
0.5mm |
Clear |
11.33g/m |
3×5m |
|
