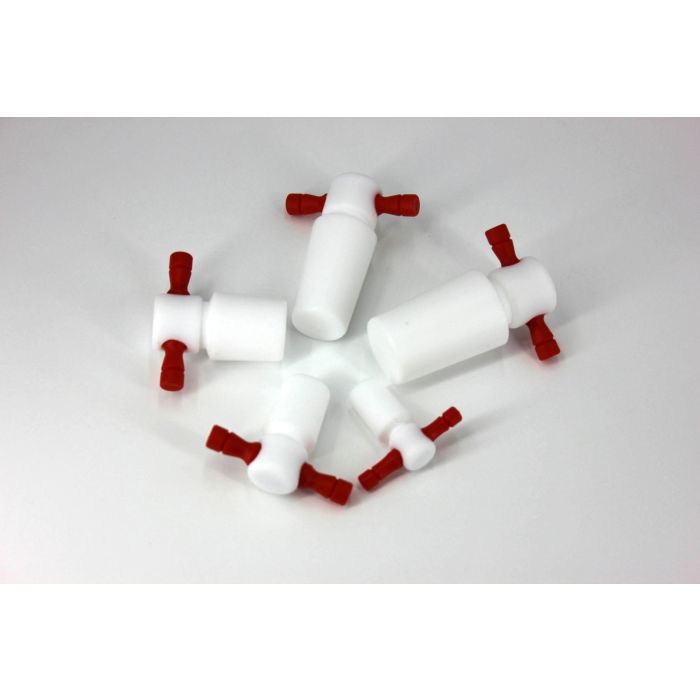

四氟塞子

聚四氟节门塞 | 四氟节门塞 | 特氟龙节门塞, PTFE Plug | PTFE Stopcock | Straight Bore Stopcock Replacement Plugs

i-Quip™
材质:聚四氟乙烯;颜色:白色

品牌：芯硅谷

低至 ¥62.90

有货

只有 %1 左

Skip to the end of the images gallery

Skip to the beginning of the images gallery

安全和危险性（GHS）

SDS英文版

技术规格说明书

技术规格说明书

一般描述

四氟塞子方便手动调节
● 材质:聚四氟乙烯
● 颜色:白色
● 聚四氟乙烯具有耐高温,低温的优点
● 具有良好的机械韧性,耐腐蚀性,不易老化,低摩擦系数
● 无毒性,中性
● 规格14/20,即四氟塞子的磨口直径为14mm,磨口高度为20mm,可以配套内磨口为14/20的产品,其他规格以此类推

规格和参数

货号	品名	磨口
P4274-02-1EA	P4274-02 四氟塞子	19/22
P4274-01-1EA	P4274-01 四氟塞子	14/20
P4274-04-1EA	P4274-04 四氟塞子	24/40
P4274-06-1EA	P4274-06 四氟塞子	34/45
P4274-03-1EA	P4274-03 四氟塞子	24/25
P4274-07-1EA	P4274-07 四氟塞子	45/50
P4274-05-1EA	P4274-05 四氟塞子	29/42

Stoppers feature PTFE handles for easy gripping
● Material:PTFE
● Color:White
● The project is made of PTFE,with high operation temperature
● It is able to stand strong acid,strong base
● Non-toxic
● Specification 14/20,namely joint of PTFE plug has 14mm diameter and 20mm height,which can match the Product which has 14/20 inner joint,as the same as other specifications

Specifications and parameter
