H2420220计算溶液所需的质量、体积或浓度。
为什么选择此级别
，适用于对基线干扰要求严格的色谱和分析工作流程。
储存与运输
避光,室温。常规运输 。请查阅批次 COA 获取详细规格。
质量文档
SDS、COA、产品数据表及规格说明书均可下载。可通过批号查询获取批次 COA。
文献证明
在色谱分析、有机合成和交叉偶联反应领域已被 0 篇同行评审文献引用。
概述
UV：473 nm (in Toluene)
Description
PQT-12 is a solution processable p-type, π-conjugated semiconductor for felxible printed electronics such as high sensitivity chemical sensors based on organic thin film transistors. It can also be used as donor material in organic solar cells.Researches show that the microstructure of PQT-12 can be controled by the choice of solvent.Study has shown PQT-12 spin-coated on a donor substrate can be transfered by means of solid phase laser-induced forward transfer (LIFT) technique onto Si/SiO2receiver substrates to form the active layer without altering its microstructure. This is important for potential large-scale fabrication of organic thin-film transistors (OTFTs). Bottom gated OTFTs obtained by this means demonstrated hole mobility values of (2.6 ± 1.3) × 10-2 cm2/Vs, and lower parasitic resistance for dielectric surface roughness around 1.2 nm and Pt electrodes. Authors attributed the resulted higher performances to i) the well-ordering of PQT-12 surface when a high-boiling-point solvent is used, and ii) the less limitating Pt source/drain electrodes.A 20 MHz organic nanodiode has been demonstrated imploying PQT-12 as the semiconducting active layer. The obtained self-switching devices (SSDs) are single layered, planar structures that can be easily fabricated in a single step of nanolithography. The SSDs possess substantially lower parasitic capacitance between contacts than conventional organic diodes and organic thin-film transistors, and the study demonstrated that the nano-rectifiers can operate at frequencies well above both 125/134 kHz and 13.56 MHz RFID communication bands.PQT-12:PEO nanofibers can be well-aligned on the textile composite substrate by electrospinning onto a rotating drum collector. The nanofiber phototransistors fabricated on the PET/PDMS textile composite substrate show highly stable device performance (on-current retention up to 82.3 (±6.7)%) under extreme bending conditions, with a bending radius down to 0.75 mm and repeated tests over 1000 cycles. The maximum photoresponsivity, photocurrent/dark-current ratio, and external quantum efficiency under blue light illumination of the PQT-12:PEO nanofiber phototransistors were 930 mA/W, 2.76, and 246%, respectively. Also, highly flexible 10 × 10 photosensor arrays were fabricated which are able to detect incident photonic signals with high resolution. These PQT-12:PEO based flexible photosensors have high potential for applications as wearable photosensors.
规格
英文别名

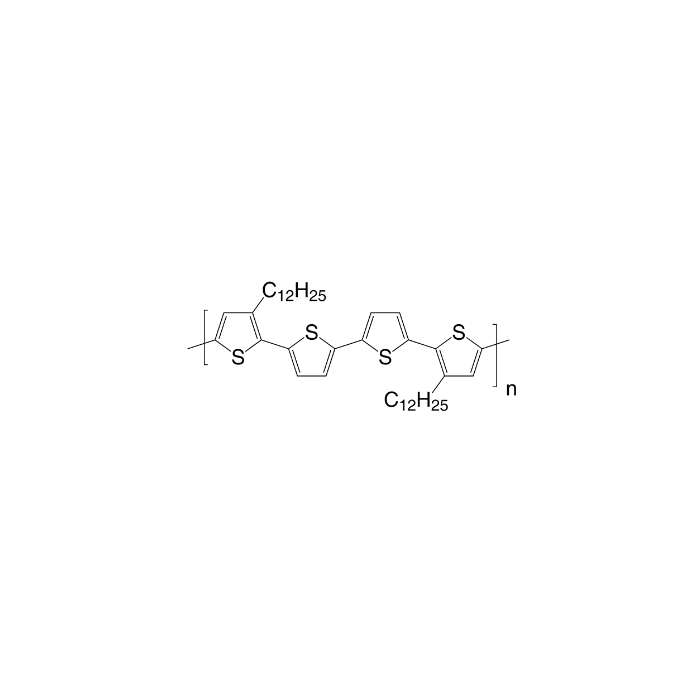

Poly[bis(3-dodecyl-2-thienyl)-2,2'-dithiophene -5,5'-diyl] | Poly(3,3′′′-didodecyl[2,2′:5′,2′′:5′′,2′′′-quaterthiophene]-5,5′′′-diyl)
规格或纯度
Mw 10,000-25,000
英文名称
PQT-12
储存条件
避光,室温
运输条件
常规运输
名称和识别符
分子类型
小分子
技术文档
高级数据
化学和物理性质
溶解性
>5mg/mL（在 CHCl3 中）
敏感性
对光敏感
闪点(℉)
Not applicable
闪点(℃)
Not applicable
安全和危险性（GHS）
质检证书（CoA,COO,BSE/TSE 和分析图谱)
溶液计算器
产品仅提供给经过验证的企业、机构和合格的专业人员用于研发。不适用于人类、动物、诊断或治疗。
