一般描述

Viton-是偏氟乙烯和六氟丙烯的线性共聚物,O型圈颜色为棕色,系美国原装进口,对油、燃料、润滑剂、无机酸、卤代芳香族和脂肪族碳氢化合物,非极性化合物,氧化剂,和金属卤化物等具有优良的耐腐蚀性,如四氯化碳、甲苯、苯和二甲苯:Viton O型圈不适用于碱性溶剂和氧化剂如酮、醚类、酯类、胺和热无水氢氟酸以及醋酸,盐酸,硫酸等,Viton O型圈展现出良好的机械性、耐电的特性,而且不受环境的影响,在真空状态下密封性好,密度是1.85.
● 材质:Viton
● 颜色:棕色
● 耐高温、耐油及耐化学药品侵蚀
● 设计简单,结构小巧,装拆方便
● O形圈断面结构极其简单,且有自密封作用,密封性能可靠

规格和参数

货号	品名	型号	内径×圈粗度	应用领域	包装
R3508-01-1EA	R3508-01 O型圈	107	5.23×2.62mm	温度计接头	1个
R3508-01-2EA	R3508-01 O型圈	107	5.23×2.62mm	温度计接头	2个
R3508-02-1EA	R3508-02 O型圈	7	3.7×1.78mm	0-4mm 高真空阀门尖部
R3508-02-6EA	R3508-02 O型圈	7	3.7×1.78mm	0-4mm 高真空阀门尖部	1包(6个)
R3508-03-1EA	R3508-03 O型圈	8	4.5×1.78mm	旋蒸卧式冷凝器C4674-01小螺纹盖配套使用	1个
R3508-03-3EA	R3508-03 O型圈	8	4.5×1.78mm	旋蒸卧式冷凝器C4674-01小螺纹盖配套使用	3个
R3508-04-12×1EA	R3508-04 O型圈	10	6.07×1.78mm	0-4mm 高真空阀门杆上	12×1个
R3508-05-1EA	R3508-05 O型圈	13	10.8×1.78mm	用于A3505-4mm,A3505-6mm,A3514-2mm,A3514-4mm 四氟节门	1个
R3508-05-3EA	R3508-05 O型圈	13	10.8×1.78mm	用于A3505-4mm,A3505-6mm,A3514-2mm,A3514-4mm 四氟节门	3个
R3508-06-1EA	R3508-06 O型圈	14	12.30×1.78mm	14/10螺纹口塞	1个
R3508-06-3EA	R3508-06 O型圈	14	12.30×1.78mm	14/10螺纹口塞	3个
R3508-07-12×1EA	R3508-07 O型圈	110	9.2×2.62mm	H3583系列耐压瓶上用O型圈&0-8mm 高真空阀门杆上	12×1个
R3508-08-12EA	R3508-08 O型圈	112	12.4×2.62mm	0-12mm 高真空阀门杆上	1包(12个)
R3508-08-1EA	R3508-08 O型圈	112	12.4×2.62mm	0-12mm 高真空阀门杆上	1个
R3508-08-3EA	R3508-08 O型圈	112	12.4×2.62mm	0-12mm 高真空阀门杆上	3个
R3508-09-3EA	R3508-09 O型圈	116	18.7×2.62mm	#15“O”型圈砝兰	3个
R3508-09-1EA	R3508-09 O型圈	116	18.7×2.62mm	#15“O”型圈砝兰	1个
R3508-09-12EA	R3508-09 O型圈	116	18.7×2.62mm	#15“O”型圈砝兰	1包(12个)
R3508-10-1EA	R3508-10 O型圈	121	26.6×2.62mm	用于#25螺纹口塞	1个
R3508-11-1EA	R3508-11 O型圈	212	21.8×3.50mm	用于#25内螺纹口塞	1个
R3508-12-1EA	R3508-12 O型圈	217	29.7×3.50mm	#25 “O”型圈砝兰	1个
R3508-12-6EA	R3508-12 O型圈	217	29.7×3.50mm	#25 “O”型圈砝兰	1包(6个)
R3508-13-1EA	R3508-13 O型圈	226	50.4×3.50mm	#40 “O”型圈砝兰	1个
R3508-13-6EA	R3508-13 O型圈	226	50.4×3.50mm	#40 “O”型圈砝兰	1包(6个)
R3508-14-1EA	R3508-14 O型圈	229	59.9×3.50mm	#50 “O”型圈砝兰	1个
R3508-14-6EA	R3508-14 O型圈	229	59.9×3.50mm	#50 “O”型圈砝兰	1包(6个)
R3508-15-1EA	R3508-15 O型圈	331	56.5×5.33mm	57mm砝兰盘	1个
R3508-16-1EA	R3508-16 O型圈	339	81.9×5.33mm	80mm砝兰盘	1个

O-rings are designed to provide solvent and chemical compatibility.Accessories for Adapters with Inlet.
● Material:Viton
● Color:Brown
● High temperature resistant, oil resistant and chemical erosion resistance
● Simple design,compact,easy assembly and disassembly
● O-ring cross-sectional structure is extremely simple,and there is self-sealing,reliable sealing performance

Specifications and parameters

Item No.	O-Ring Size	I.D.×W	Application	Package
R3508-14-1EA	229	59.9×3.50mm	#50 "O"-ring flange	1 piece
R3508-08-12EA	112	12.4×2.62mm	The rod of 0-12mm High vacuum valve	1 pack (12 pieces)
R3508-11-1EA	212	21.8×3.50mm	For #25 inner threaded plug	1 piece
R3508-08-1EA	112	12.4×2.62mm	The rod of 0-12mm High vacuum valve	1 piece
R3508-12-1EA	217	29.7×3.50mm	#25 "O"-ring flange	1 piece
R3508-15-1EA	331	56.5×5.33mm	2.24 in.(57mm) flange Plate	1 piece
R3508-06-1EA	14	12.30×1.78mm	14/10 Threaded Joints	1 piece
R3508-12-6EA	217	29.7×3.50mm	#25 "O"-ring flange	1 pack (6 pieces)
R3508-14-6EA	229	59.9×3.50mm	#25 "O"-ring flange	1 pack (6 pieces)
R3508-02-1EA	7	3.7×1.78mm	The tip of 0-4mm High vacuum valve	1 piece
R3508-13-1EA	226	50.4×3.50mm	#40 "O"-ring flange	1 piece
R3508-01-1EA	107	5.23×2.62mm	Inlet or Thermometer Adapter	1 piece
R3508-16-1EA	339	81.9×5.33mm	3.15 in.(80mm) flange Plate	1 piece
R3508-04-12×1EA	10	6.07×1.78mm	The rod of 0-4mm High vacuum valve	12×1 piece
R3508-13-6EA	226	50.4×3.50mm	#40 "O"-ring flange	1 pack (6 pieces)
R3508-05-1EA	13	10.8×1.78mm	For A3505-4mm,A3505-6mm,A3514-2mm,A3514-4mm PTFE Stopcock	1 piece
R3508-07-12×1EA	110	9.2×2.62mm	H3583 series Heavy-Wall Pressure Vessel with O-Ring & The rod of 0-8mm High vacuum valve	12×1 piece
R3508-03-1EA	8	4.5×1.78mm	For screw caps of C4674-01 condenser for rotary evaporators	1 piece
R3508-10-1EA	121	26.6×2.62mm	For #25 threaded plug	1 piece
R3508-09-12EA	116	18.7×2.62mm	#15 O-rings joint	1 pack (12 pieces)
R3508-09-1EA	116	18.7×2.62mm	#15 O-rings joint	1 piece

质检证书（CoA,COO,BSE/TSE 和分析图谱)

C of A & Other Certificates(BSE/TSE, COO):

输入批号以搜索分析图谱:

通过匹配包装上的批号来查找并下载产品的 COA，每批产品都进行了严格的验证，您可放心使用！

找到2个结果

批号(Lot Number)	证书类型	日期	货号
A2402592	分析证书	23-11-24	R3508
K2308595	分析证书	23-10-18	R3508

溶液计算器

摩尔浓度计算器

计算溶液所需的质量、体积或浓度。

质量

=

浓度

x

体积

x

分子量

g/mol

稀释计算器

计算配制储备溶液所需的稀释度。

浓度1（C1）

x

体积 1 (V1)

=

浓度 2 (C2)

x

体积 2 (V2)

复溶计算器

复溶计算器允许您快速计算试剂的体积，以复溶小瓶。只需输入试剂的质量和目标浓度，计算器将确定其余部分。

体积（添加到小瓶中）

=

质量（小瓶）

÷

所需的复溶浓度

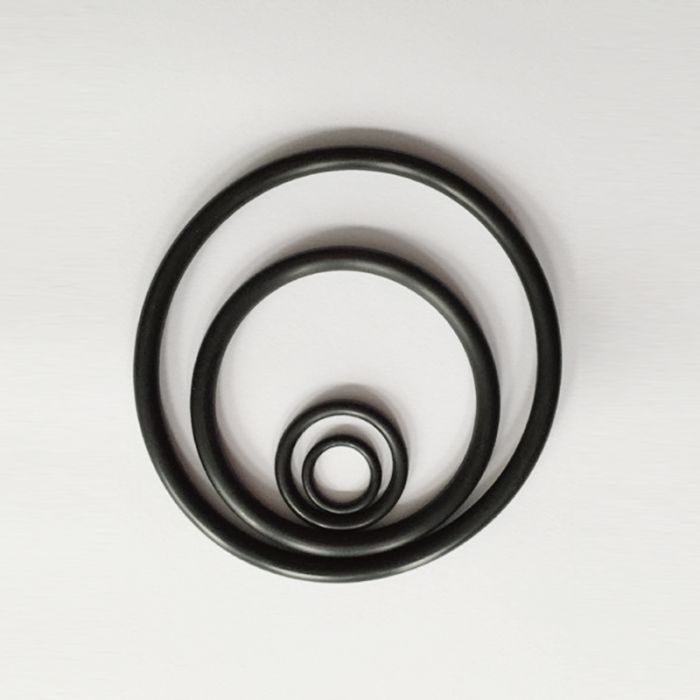

O型圈
