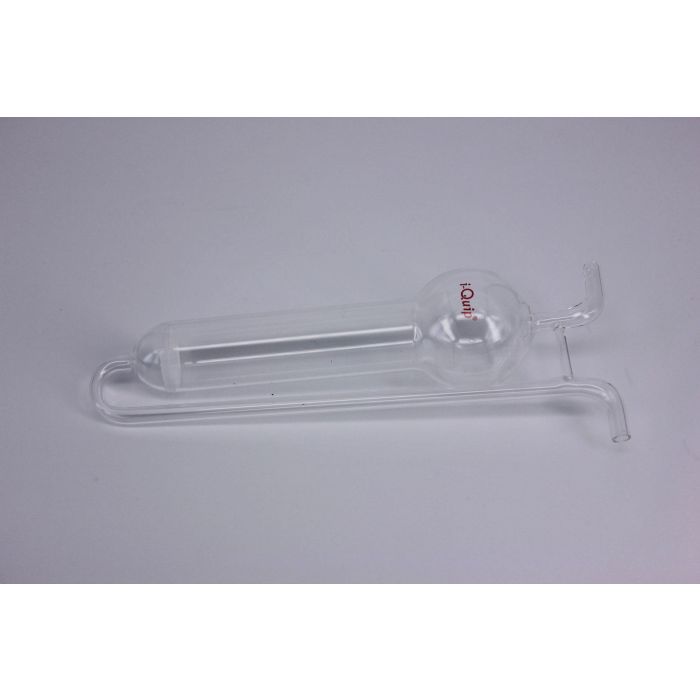

U型多孔玻板吸收管是用溶液吸收法采集大气中污染物的一种玻璃容器.为了采集大气中的某种污染成分.在吸收瓶中装入特定成分的溶液,气体通过吸收液时,待测污染物被吸收,经分析测定可确定大气中该污染物的浓度.吸收瓶的最主要的性能指标是在充装一定量的吸收液条件下,它的最适宜的采样流量,吸收效率和阻力降.
● 材质:高硼硅玻璃(GG17料)
● 颜色:透明/棕色
● 使用范围:用于测定空气中有害物质的含量,主要采集气态,蒸气态物质,同时也可采集雾态气溶胶及空气中各种有毒有害气体的样品,采集效率在97％以上.
● 适用于Q/320684DNC01-1998规定的检测方法,机械强度高,耐高温高压,可反复使用
● 棕色U型吸收瓶(管)用遮光性能良好的棕色玻璃制成,常光状态时无需遮光.吸收瓶(管)中装入5ml-10ml吸收液时以0.1L/min-5L/min流量采样.

规格和参数

货号	品名	容积	颜色	球直径	包装
U2914-A10ml-1EA	U型多孔玻板吸收管	10ml	透明	40mm	1个
U2914-B50ml-1EA	U型多孔玻板吸收管	50ml	棕色	50mm	1个
U2914-B10ml-1EA	U型多孔玻板吸收管	10ml	棕色	45mm	1个
U2914-C10ml-1EA	U型多孔玻板吸收管	10ml	棕色	40mm	1个
U2914-W10ml-1EA	U型多孔玻板吸收管	10ml	透明	45mm	1个
U2914-W50ml-1EA	U型多孔玻板吸收管	50ml	透明	50mm	1个

技术文档

📋 安全数据表 (SDS)

全面的危险、操作、储存及法规合规文件。

下载 SDS →

✅ 分析证书 (COA)

批次质量数据。输入批号以获取对应 COA。

查询 COA →

📊 产品数据表

产品规格和应用的快速参考摘要。

查看数据表 →

🔬 规格说明书

该级别的完整质量属性和验收标准。

查看规格说明 →

高级数据

一般描述

规格和参数

货号	品名	容积	颜色	球直径	包装
U2914-A10ml-1EA	U型多孔玻板吸收管	10ml	透明	40mm	1个
U2914-B50ml-1EA	U型多孔玻板吸收管	50ml	棕色	50mm	1个
U2914-B10ml-1EA	U型多孔玻板吸收管	10ml	棕色	45mm	1个
U2914-C10ml-1EA	U型多孔玻板吸收管	10ml	棕色	40mm	1个
U2914-W10ml-1EA	U型多孔玻板吸收管	10ml	透明	45mm	1个
U2914-W50ml-1EA	U型多孔玻板吸收管	50ml	透明	50mm	1个

Absorption Tube devised for the determination of the content of harmful substances in the air.To collect some kind of pollution components in the atmosphere.The absorption solution into the bottle,gas through the absorption liquid and measured pollutants are absorbed.Analysis determination can determine the concentration of the pollutants in the atmosphere,Absorption bottle of the main performance index is in filling a certain amount of absorption solution conditions,the most suitable sampling flow,absorption efficiency and resistance drop.
● Material:High Borosilicate Glass(GG17 expansion)
● Color:Clear/Brown
● Scope:used for determination of the content of harmful substances in the air,were collected from the gas,vapor material and sample for the fog state of aerosol and air a variety of toxic and harmful gases,the collection efficiency is over 97%.
● The detection method for Q/320684DNC01-1998 requirements,high mechanical strength,resist high temperature and high pressure,can be used repeatedly
● Brown U type absorption bottle (tube) is made of good shading performance of brown glass,often state light without shading.The absorption bottle (tube) into 5ml-10ml absorption liquid to 0.1L/min-5L/min flow sampling.

Specifications and parameters

Item No.	Capacity	Color	Ball Diameter	Package
U2914-A10ml-1EA	10ml	Clear	40mm	1 piece
U2914-B50ml-1EA	50ml	Brown	50mm	1 piece
U2914-B10ml-1EA	10ml	Brown	45mm	1 piece
U2914-C10ml-1EA	10ml	Brown	40mm	1 piece
U2914-W10ml-1EA	10ml	Clear	45mm	1 piece
U2914-W50ml-1EA	50ml	Clear	50mm	1 piece
