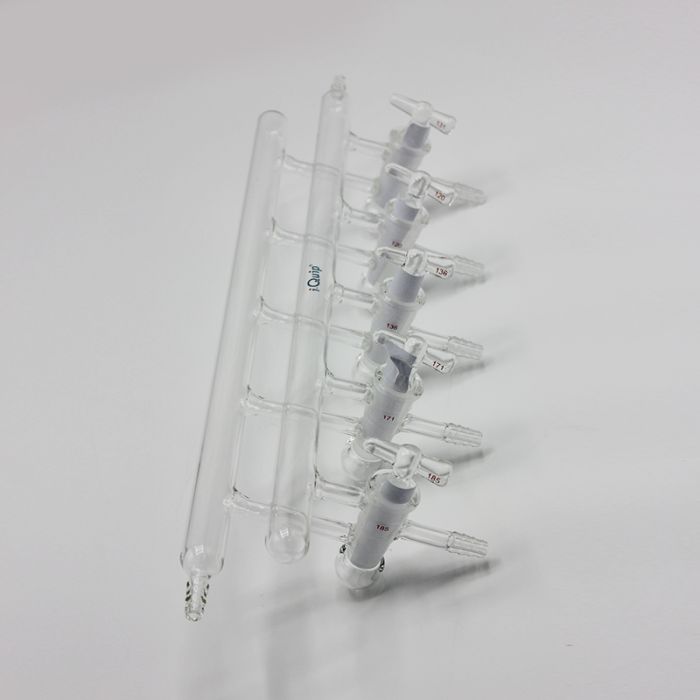

双排管真空分配器为带球腔的三通空心玻璃节门.在节门的后部有一个中空的球形玻璃腔,当真空抽气时,球腔内会产生负压,从而使节门塞吸到节门肚上,以提高密封性,节门塞内为平行的双排导气孔,当节门旋转180度时可切换通气或真空.两个主管为22mm(外径).每组节门间的距离为75mm.为保证真空度,每组节门都经过手工精密对研.
● 材质:高硼硅玻璃
● 颜色:透明
● 宽度:300mm、375mm、450mm
● 节门组数:3、4、5
● 空心节门塞的靠尾部真空气囊形成真空,把塞子吸住,真空度高,使用时注意后排抽真空,否则塞子会弹出
● V3941-H375mm 主管道带4个15#法兰接口,可与S3978-01 法兰盘塞子和带15#法兰的抽气小咀配套使用,并需配R3508-09 O型橡胶圈

规格和参数

货号	品名	节门组数	总长度	类型描述	包装
V3941-A450mm-1EA	双排管真空气体分配器(空心节门塞)	5	450mm	带4个10mm通气小咀,分别为前左、前右、后左、后右	1个
V3941-C450mm-1EA	双排管真空气体分配器(空心节门塞)	5	450mm	带2个10mm通气小咀,分别前右、后左	1个
V3941-G450mm-1EA	V3941-G450mm 双排管真空气体分配器(空心节门塞)	5	450mm	带3个10mm通气小咀,分别为前右、后左、后右	1个

技术文档

📋 安全数据表 (SDS)

全面的危险、操作、储存及法规合规文件。

下载 SDS →

✅ 分析证书 (COA)

批次质量数据。输入批号以获取对应 COA。

查询 COA →

📊 产品数据表

产品规格和应用的快速参考摘要。

查看数据表 →

🔬 规格说明书

该级别的完整质量属性和验收标准。

查看规格说明 →

高级数据

一般描述

规格和参数

货号	品名	节门组数	总长度	类型描述	包装
V3941-A450mm-1EA	双排管真空气体分配器(空心节门塞)	5	450mm	带4个10mm通气小咀,分别为前左、前右、后左、后右	1个
V3941-C450mm-1EA	双排管真空气体分配器(空心节门塞)	5	450mm	带2个10mm通气小咀,分别前右、后左	1个
V3941-G450mm-1EA	V3941-G450mm 双排管真空气体分配器(空心节门塞)	5	450mm	带3个10mm通气小咀,分别为前右、后左、后右	1个

All glass manifolds are equipped with 4mm double oblique,high vacuum hollow glass stopcocks,which are precision ground with corresponding numbers on barrel and plug.Lower vacuum chambers on the stopcock are evacuated with a separate hole in the plug to secure the plug in the stopcock barrels.Beams have an O.D. of 22mm,and are available in a variety of opening configurations.Distance between stopcocks is 100mm center to center.
● Material:Borosilicate glass
● Color:Clear
● No. of Ports:3、4、5
● Width:11.81 in.(300mm)、14.76 in.(375mm)、17.72 in.(450mm)
● Hollow glass stopcock by vacuum balloon creates a vacuum to suck the plug,high vacuum,note that when using the rear vacuum,otherwise it will pop up stopper
● V3941-H375mm Manifold with #15 O-Ring Joints,Can used with S3978-01 Stopper with #15 O-Ring Joint and hose Connections with #15 O-Ring Joints,R3508-09 Replacement O-rings

Specifications and parameters

Item No.	No. of Ports	Width	Description	Package
V3941-A450mm-1EA	5	450mm	Manifold with Front-Left-Right and Rear-Left-Right 0.39 in.(10mm) Hose Connections	1 piece
V3941-C450mm-1EA	5	450mm	Manifold with Front-Right and Rear-Left 0.39 in.(10mm)Hose Connections	1 piece
V3941-G450mm-1EA	5	450mm	Manifold with Front-Right and Rear-Left-Right 0.39 in.(10mm)Hose Connections	1 piece
