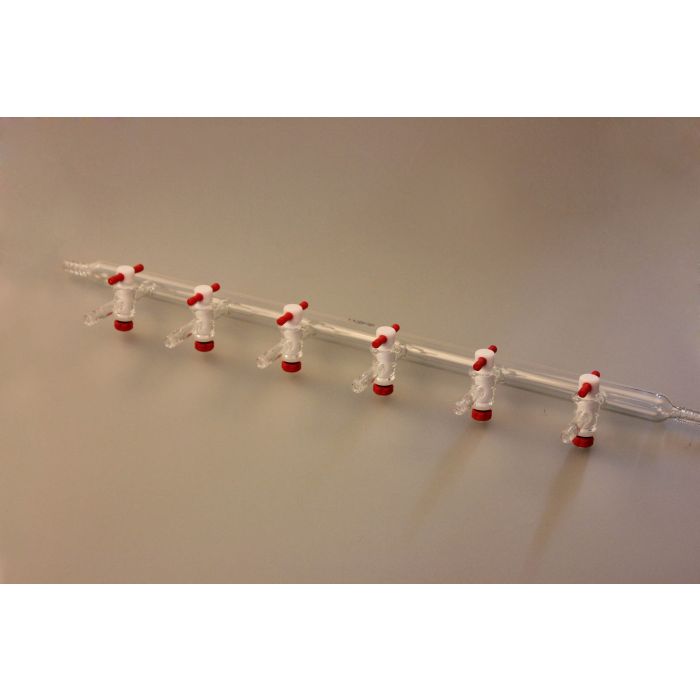

General purpose manifolds are available with either 2mm or 4mm PTFE stopcocks. The main tube has a 22mm O.D., and features a serrated hose connection (10mm O.D.) at the right, left, or both right and left sides. Delivery ports have 10mm serrated hose connections. Distance between stopcocks is 100mm.
● Material:Borosilicate glass ● Color:Clear ● No. of Ports:4,6 ● For dispensing of gas,introducing gas into exogenous system,suitable for anhydrous oxygen-free operation
Specifications and parameters
Item No.
No.of Ports
Stopcock Diameter
The main tube O.D.
Distance between stopcocks
Type
Joint size
Package
V3959-15-1EA
4
2mm
22mm
75mm
Features a serrated hose connection (0.39 in.(10mm) O.D.) at the left side
14/20
1 piece
V3959-09-1EA
4
2mm
22mm
75mm
Features a serrated hose connection (0.39 in.(10mm) O.D.) at the right side
-
1 piece
V3959-02-1EA
4
4mm
22mm
75mm
Features a serrated hose connection (0.39 in.(10mm) O.D.) at the right side
-
1 piece
V3959-12-1EA
6
4mm
22mm
75mm
Features a serrated hose connection (0.39 in.(10mm) O.D.) at the both right and left sides
1 piece
V3959-10-1EA
4
4mm
22mm
75mm
Features a serrated hose connection (0.39 in.(10mm) O.D.) at the both right and left sides
-
1 piece
V3959-11-1EA
6
2mm
22mm
75mm
Features a serrated hose connection (0.39 in.(10mm) O.D.) at the right side
-
1 piece
V3959-06-1EA
4
4mm
22mm
75mm
Features a serrated hose connection (0.39 in.(10mm) O.D.) at the left side
