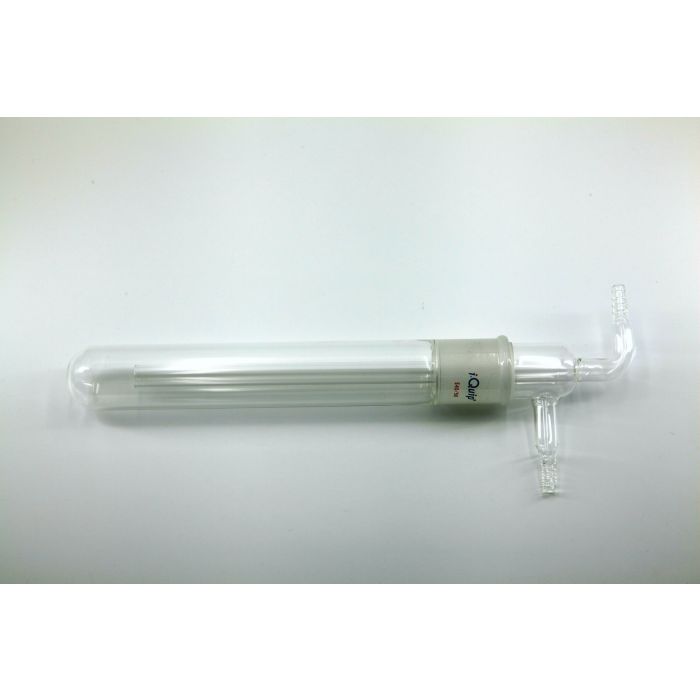

分体式设计,可以使导气管与主管体分开以便于清洗,导气管口处为锯齿形小咀.导气管最粗管外径为16mm,最细管外径为13mm.小咀外径均为10mm,与双排管真空分配器的小咀外径一致,从而方便连接.
● 材质:高硼硅玻璃
● 颜色:透明
● 分体式设计,便于移出冷凝物
● 接入及接出小咀接头均为180°角,便于和各种真空装置相连接
● 冷阱塞子具有一个标准内磨口,冷阱瓶体具有一个标准外磨口

规格和参数

货号	品名	磨口	外径	磨口下部长度	内管外径	包装
V4151-32mm-1EA	具磨口冷阱,分体式设计	29/42	32mm	200mm	10mm	1个
V4151-60mm-1EA	具磨口冷阱,分体式设计	55/50	60mm	300mm	30mm	1个
V4151-30mm-1EA	具磨口冷阱,分体式设计	24/40	30mm	200mm	10mm	1个
V4151-45mm-1EA	具磨口冷阱,分体式设计	45/50	45mm	250mm	16mm	1个
V4151-55mm-1EA	具磨口冷阱,分体式设计	50/50	55mm	275mm	26mm	1个
V4151-40mm-1EA	具磨口冷阱,分体式设计	34/45	40mm	225mm	16mm	1个
V4151-50mm-1EA	具磨口冷阱,分体式设计	45/50	50mm	250mm	22mm	1个

技术文档

📋 安全数据表 (SDS)

全面的危险、操作、储存及法规合规文件。

下载 SDS →

✅ 分析证书 (COA)

批次质量数据。输入批号以获取对应 COA。

查询 COA →

📊 产品数据表

产品规格和应用的快速参考摘要。

查看数据表 →

🔬 规格说明书

该级别的完整质量属性和验收标准。

查看规格说明 →

高级数据

一般描述

规格和参数

货号	品名	磨口	外径	磨口下部长度	内管外径	包装
V4151-32mm-1EA	具磨口冷阱,分体式设计	29/42	32mm	200mm	10mm	1个
V4151-60mm-1EA	具磨口冷阱,分体式设计	55/50	60mm	300mm	30mm	1个
V4151-30mm-1EA	具磨口冷阱,分体式设计	24/40	30mm	200mm	10mm	1个
V4151-45mm-1EA	具磨口冷阱,分体式设计	45/50	45mm	250mm	16mm	1个
V4151-55mm-1EA	具磨口冷阱,分体式设计	50/50	55mm	275mm	26mm	1个
V4151-40mm-1EA	具磨口冷阱,分体式设计	34/45	40mm	225mm	16mm	1个
V4151-50mm-1EA	具磨口冷阱,分体式设计	45/50	50mm	250mm	22mm	1个

With [ST] joints for easy removal of condensate.Serrated hose connections for the side tube have an O.D. of 13mm at the smallest serration,and 16mm at the largest serration.The center tube hose connection is always 10mm for easy connection to manifold bank tubes of the same diameter.
● Material:Borosilicate glass
● Color:Clear
● Two piece construction for easy removal of condensate
● Inlet and outlet are 180 degree apart for installation into a variety of vacuum systems
● Stopper has a standard taper inner joint and body has an outer joint

Specifications and parameters

Item No.	Joint size	Outer diameter	Length	Side and Inner Tube O.D.	Package
V4151-32mm-1EA	29/42	32mm	200mm	10mm	1 piece
V4151-60mm-1EA	55/50	60mm	300mm	30mm	1 piece
V4151-30mm-1EA	24/40	30mm	200mm	10mm	1 piece
V4151-45mm-1EA	45/50	45mm	250mm	16mm	1 piece
V4151-55mm-1EA	50/50	55mm	275mm	26mm	1 piece
V4151-40mm-1EA	34/45	40mm	225mm	16mm	1 piece
V4151-50mm-1EA	45/50	50mm	250mm	22mm	1 piece
