计算溶液所需的质量、体积或浓度。
为什么选择此级别
提供 ≥99%(HPLC) 纯度，适用于对基线干扰要求严格的色谱和分析工作流程。
储存与运输
室温。 。请查阅批次 COA 获取详细规格。
质量文档
SDS、COA、产品数据表及规格说明书均可下载。可通过批号查询获取批次 COA。
文献证明
在色谱分析、有机合成和交叉偶联反应领域已被 0 篇同行评审文献引用。
概述
Description
EH44 is a carbazole derivative used as interfacial, hole transporting and contact layer in perovskite solar cell (PSC). Using EH44 can increase the performance and the lifetime of the devices. EH44 is a Li+free, hydrophobic hole transporting material (HTM) which can eliminate degradation due to Li+migration, supresse degradation due to moisture absorption and has long-term stability in fabricated PSC.EH44 is a Li+ free, hydrophobic hole transporting material (HTM). It eliminates degradation due to Li+ migration, supresses degradation due to moisture absorption and thus showed promise for achieving long-term stability in fabricated perovskite solar cells.Using EH44 as HTM in a device configuration of: SnO2/PAL/EH44/MoOx /Al, not only generated high power conversion efficiency (PCE) comparable to the record PCE by using the state-of-the-art-HTM Spiro-OMeTAD, but also most importantly showed greatly improved device stability: even under the combined stresses of light (including ultraviolet light), oxygen and moisture, perovskite solar cells using EH44 as hole transporting layer were shown to retain 94% of their peak efficiency despite 1,000 hours of continuous unencapsulated operation in ambient air conditions (relative humidity of 10-20%). When stability tests were conducted in an inert atmosphere, degradation of only ∼2% over the course of 1,500 hours of continuous operation was observed.Note that in the above mentioned result, silver bis(trifluoromethanesulfonyl)imide (product 668001) was used to oxidize EH44 and yield EH44+TFSI−.EH44+TFSI−was then blended with neat EH44 at various ratios to control the conductivity (and optical transparency if desired) and optimize the device performance. The impressive power conversion efficiency (PCE) of 18.5% was achieved for a perovskite solar cell using EH44 layers of ∼60 nm thickness doped with 14wt% EH44+TFSI−and 25 mg/ml 4-tert-butylpyridine (product 142379), which is comparable to device performance using spiro-OMeTAD (19%) as the HTM.EH44 can be used as an HTM with a high power conversion efficiency (PCE) in comparison to PCE of spiro-OMETAD. It was used in PSC with 94% retention of peak efficiency after 1000 hours of operation.
规格
英文别名

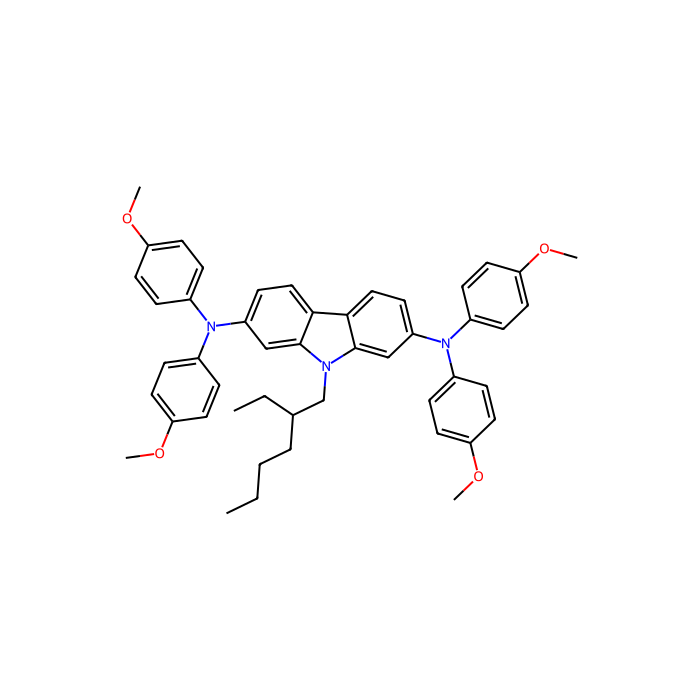

9-(2-Ethylhexyl)-N,N,N,N-tetrakis(4-methoxyphenyl)- 9H-carbazole-2,7-diamine)
规格或纯度
≥99% (HPLC)
英文名称
EH44
储存条件
室温
纯度
≥99%(HPLC)
名称和识别符
分子类型
小分子
Smiles
CCC(CCCC)CN1C2=CC(N(C3=CC=C(OC)C=C3)C4=CC=C(OC)C=C4)=CC=C2C5=CC=C(N(C6=CC=C(OC)C=C6)C7=CC=C(OC)C=C7)C=C15
分子量
733.94
Reaxy-Rn
32142370
Reaxys-RN link address
https://www.reaxys.com/reaxys/secured/hopinto.do?context=S&query=IDE.XRN=32142370&ln=
技术文档
高级数据
化学和物理性质
溶解性
不溶（甲醇和己烷）可溶（DMSO、THF、甲苯、邻二甲苯、苯甲醚、氯仿、氯苯和 1,2-二氯苯）
闪点(℉)
Not applicable
闪点(℃)
Not applicable
质检证书（CoA,COO,BSE/TSE 和分析图谱)
C of A & Other Certificates(BSE/TSE, COO):
输入批号以搜索分析图谱:
