亚铁离子含量检测试剂盒(TPTZ, 比色法)

货号: F1515876
有货
级别和纯度: BioReagent ? 生物试剂级(BioReagent)—— 经测试适用于生命科学和分子生物学。适用于需要生物相容性的细胞培养、检测和生化工作。 适用于分析 ? 适用于分析 —— 纯度满足一般分析程序。作为常规方法中可靠的分析试剂使用。 比色法 ? 比色级 —— 适用于显色定量检测的纯度。当试剂纯度影响显色强度和准确度时使用。
★
规格
库存
价格
数量
50T
F1515876-50T
现货 Stock Image
¥169.90
请输入您要添加的产品数量
🧪
为什么选择此级别

BioReagent,比色法,适用于分析 级 ,适用于对基线干扰要求严格的色谱和分析工作流程。

🌡

储存与运输

2-8°C储存,避光。低温运输 。请查阅批次 COA 获取详细规格。

📋

质量文档

SDS、COA、产品数据表及规格说明书均可下载。可通过批号查询获取批次 COA。

📚

文献证明

在色谱分析、有机合成和交叉偶联反应领域已被 0 篇同行评审文献引用。

概述

铁是人体必需的元素之一,对人体的新陈代谢和身体健康具有重要作用,血液中铁的含量不足,就会造成缺铁性贫血。铁存在于人体所有的细胞内,各组织、器官包括各内分泌腺都含有铁。肝脏、脾脏和肺组织内含量较为丰富。成人体内含铁3~5克,大部分都以蛋白质复合物形式存在,极少部分以离子的形态存在。亚铁离子是血红素和血红蛋白中的关键元素,同时也在许多生化反应中起到重要作用。本试剂盒采用比色法对动植物组织、血清(浆)或其他液体中的亚铁离子进行定量,样本中的Fe²⁺在酸性条件下与三吡啶基三嗪(TPTZ)形成蓝色配合物,在593nm处有吸收峰,通过测定该波长吸光度即可计算Fe²⁺的含量。

F1515876组分物理外观50T储存条件单次测试使用量
F1515876A缓冲液液体45 mL2-8℃. 避光保存按需
F1515876B显色液液体21 mL2-8℃. 避光保存300 μL
F1515876C亚铁离子标准品(40mM)液体0.5 mL2-8℃. 避光保存10 μL
F1515876D标准品稀释液液体15 mL2-8℃. 避光保存按需
F1515876E提取液液体45 mL2-8℃. 避光保存按需

使用方法

1. 样品准备

(1) 组织:按照每0.01 g组织加入0.1 mL提取液的比例,用匀浆器或研钵冰浴匀浆。10000g,4℃离心 10 min,收集上清液,置冰上待测。

(2) 血清(浆)等液体样本:澄清的液体样本可直接检测。如果样本浑浊,5000 g,4℃离心 5 min,取上清液,置冰上待测。

注:本试剂盒提取液不能使用 BCA 蛋白定量,如需测定蛋白浓度,推荐使用阿拉丁即用型Bradford蛋白定量试剂盒 (去垢剂兼容型) (B1509656)。为确保样品数值在标准曲线范围内,建议进行预实验将样品设置多个稀释倍数,以确定样品中亚铁离子的大致浓度,如果数值不在标准曲线范围内,请调整样品的稀释倍数。样本稀释液为缓冲液。

2. 绘制标准曲线

将40 mmol/L(40000 μmol/L)标准品用标准品稀释液进行稀释得到100、50、25、12.5、6.25、3.125 μmol/L的标准品,现配现用。

标准品稀释可参考下表:

序号稀释前浓度(μmol/L)标准品体积(μL)标准品稀释液体积(μL)稀释后浓度(μmol/L)
14000010990400
24004001200100
310080080050
45080080025
52580080012.5
612.58008006.25
76.258008003.125

备注:下述实验中每个标准管需600μL标准品(注意不要在此步骤直接检测吸光度)。

3. 样品测定

(1) 可见光分光光度计预热 30 min 以上,调节波长到 593 nm。

(2) 按下表设置反应体系加样。设置不加样品的空白对照管。

试剂名称空白对照管标准品管测定样品管
样品(μL)00600
标准品(μL)06000
缓冲液(μL)60000
显色液(μL)300300300

(3) 混匀,37°C 孵育20 min,取800 μL上清液至1mL玻璃比色皿(光径1cm)中,以空白管调零,于波长593nm处读取标准品管和测定样品管的吸光度A。标准品管吸光度记为A标准,测定样品管吸光度记为A测定。

4. 亚铁离子含量计算

(1) 标准曲线的绘制:

以标准溶液浓度为x轴,A标准 为 y 轴,绘制标准曲线,得到标准方程,将 A测定 带入方程得到样品浓度Cₛₐₘₚₗₑ (μmol/L)。
(2) 亚铁离子浓度计算:
血清(浆)等液体样本:Fe²⁺含量 (μmol/L) = Cₛₐₘₚₗₑ × f;

组织样本:

a. 以组织湿重进行计算: Fe²⁺ 含量 (μmol/kg wet weight) = Cₛₐₘₚₗₑ × f ÷ (m/V);

b. 按蛋白浓度计算:亚铁离子(nmol/mg 蛋白)= Cₛₐₘₚₗₑ × f ÷ Cₚᵣ

注:

f:样本加入检测体系前的稀释倍数;

m:组织湿重质量(g);

V:样本提取液加入量(mL);

Cₚᵣ:样本蛋白质浓度,mg/mL。

注意事项

1. 操作过程中,样品与试剂等避免与铁器接触,以防污染。

2. 建议使用新鲜样本。亚铁离子易被氧化,样本放置时间较长或反复冻融会造成结果不准确。

3. 所测样本的值高于标准曲线的上限,应稀释样品后重新测定。

4. 正式检测前,建议选择 2-3 个预期差异较大的样本进行预实验。

5. 为了您的安全和健康,请穿实验服并戴一次性手套操作。

结果展示

典型标准曲线:



Iron is one of the essential elements for the human body and plays an important role in metabolism and overall health. Insufficient iron levels in the blood can lead to iron deficiency anemia. Iron is present in all cells of the human body, including various tissues, organs, and endocrine glands. The liver, spleen, and lung tissues are relatively rich in iron. The adult body contains 3–5 g of iron, most of which exists as protein complexes, with a very small portion in ionic form. Ferrous ions (Fe²⁺) are key components of heme and hemoglobin and also play important roles in many biochemical reactions. This kit employs a colorimetric method for the quantitative determination of Fe²⁺ in animal and plant tissues, serum/plasma, or other liquids. Under acidic conditions, Fe²⁺ in the sample reacts with tripyridyltriazine (TPTZ) to form a blue complex that has a maximum absorbance at 593 nm. The concentration of Fe²⁺ is then determined by measuring the absorbance at this wavelength.


F1515876ComponentAppearance50TStorageQuantity Per Test
F1515876A Buffer SolutionLiquid45 mL2-8℃. Store in the darkAs needed
F1515876B Chromogenic SolutionLiquid21 mL2-8℃. Store in the dark300 μL
F1515876CFerrous Ion Standard(40mM)Liquid0.5 mL2-8℃. Store in the dark10 μL
F1515876DStandard diluentLiquid15 mL2-8℃. Store in the darkAs needed
F1515876EExtraction BufferLiquid45 mL2-8℃. Store in the darkAs needed

Protocol

1. Sample Preparation

(1) Tissue: Add 0.1 mL of extraction buffer per 0.01 g of tissue. Homogenize using a homogenizer or mortar and pestle on ice. Centrifuge at 10,000 × g for 10 minutes at 4°C. Collect the supernatant and keep on ice.

(2) Serum/plasma or other liquid samples: Clear liquid samples can be tested directly. If the sample is turbid, centrifuge at 5000 × g and 4 °C for 5 minutes, collect the supernatant, and keep it on ice until analysis.

Note: The extraction buffer provided with this kit is not compatible with BCA protein assays. For protein concentration determination, we recommend Aladdin’s Ready‑to‑Use Bradford Protein Assay Kit (Detergent Compatible) (B1509656). To ensure that the sample values fall within the standard curve range, it is recommended to perform a preliminary experiment with multiple dilution factors for the sample to determine the approximate concentration of ferrous ions. If the values are not within the standard curve range, please adjust the dilution factor. The sample diluent is Buffer Solution.

2. Standard Curve Preparation

Dilute the 40 mmol/L (40,000 μmol/L) standard with standard diluent to obtain the following concentrations: 100, 50, 25, 12.5, 6.25, 3.125 μmol/L. Prepare fresh before use.

A recommended dilution scheme is shown below:

No.Pre‑dilution Conc. (μmol/L)Std. Volume (μL)Standard diluent Volume (μL)Final Conc. (μmol/L)
14000010990400
24004001200100
310080080050
45080080025
52580080012.5
612.58008006.25
76.258008003.125

Note: Each standard tube requires 600 μL of diluted standard for the subsequent assay (do not measure absorbance at this step).

3. Sample Measurement

(1) Pre‑warm the visible spectrophotometer for at least 30 minutes, and then set the wavelength to 593 nm.

(2) Prepare the reaction mixtures as shown below. Include a blank control (no sample).

Reagent Blank StandardSample
Sample (μL)00600
Standard (μL)06000
Buffer Solution (μL)60000
Chromogenic Solution (μL)300300300

(3) Mix thoroughly and incubate at 37 °C for 20 minutes. Transfer 800 μL of the supernatant to a 1‑mL glass cuvette (with a 1‑cm light path). Zero the instrument using the blank tube, and then read the absorbance (A) of the standard tube and the sample tube at 593 nm. Record the standard absorbance as Aₛₜₐₙdₐᵣd, and the sample absorbance as Aₛₐₘₚₗₑ.

4. Calculation of Fe²⁺ Content

(1) Standard curve: Plot the standard concentration (x‑axis) against Aₛₜₐₙdₐᵣd (y‑axis) to obtain the linear equation. Substitute Aₛₐₘₚₗₑ into the equation to calculate the sample concentration  Cₛₐₘₚₗₑ (μmol/L).

(2) Fe²⁺ concentration calculation:

For serum/plasma or other liquid samples: Fe²⁺ content (μmol/L) =  Cₛₐₘₚₗₑ × f

For tissue samples:

Based on tissue wet weight: Fe²⁺ content (μmol/kg wet weight) =  Cₛₐₘₚₗₑ × f ÷ (m / V)

Based on protein concentration: Fe²⁺ content (nmol/mg protein) =  Cₛₐₘₚₗₑ × f  ÷ Cₚᵣ

Note:

f = dilution factor before measurement;

m = tissue wet weight (g);

V = volume of Extraction Buffer added (mL);

Cₚᵣ = protein concentration of the sample (mg/mL).

Precautions:

1. Avoid contact of samples and reagents with iron materials to prevent contamination.

2. Fresh samples are recommended. Fe²⁺ is easily oxidized; prolonged storage or repeated freeze‑thaw cycles may compromise accuracy.

3. If the sample reading exceeds the highest standard, dilute the sample and repeat the assay.

4. Before formal testing, a preliminary experiment using 2–3 samples with expected large differences is recommended.

5. For your safety and health, wear a lab coat and disposable gloves during operation.

Results Presentation

Typical standard curve:



规格

别名
亚铁离子比色法测试盒 | 亚铁离子检测试剂盒(显色法) | 亚铁离子含量检测试剂盒(比色法) | 亚铁离子含量检测试剂盒 | 亚铁离子含量检测试剂盒(微量法)
英文别名
Ferrous Iron Colorimetric Assay Kit | Ferrous Ion Assay Kit, Colorimetric | Ferrous Iron Content Detection Kit (Colorimetric) | Ferrous Ion Content Assay Kit | CheKine™ Micro Cell Ferrous Ion Content Assay Kit
规格或纯度
BioReagent, 比色法, 适用于分析
英文名称
Ferrous Ion Content Assay Kit (TPTZ, Colorimetric Method)
应用
细胞代谢
样品类型
动物组织, 植物组织, 细胞, 血清
检测方法
比色法
定量&半定量
定量
检测仪器
可见光分光光度计
检测波长
593nm
敏感性
Light-sensitive
样本体积
600μL
储存与运输
储存条件
2-8°C储存,避光
运输条件
低温运输
稳定性与储存
各组分在相应的储存条件下保质期6个月。
组分与储存
F1515876组分外观50T储存条件单次测试使用量
F1515876A 缓冲液液体45 mL2-8℃. 避光保存按需
F1515876B 显色液液体21 mL2-8℃. 避光保存300 μL
F1515876C亚铁离子标准品(40mM)液体0.5 mL2-8℃. 避光保存10 μL
F1515876D标准品稀释液液体15 mL2-8℃. 避光保存按需
F1515876E提取液液体45 mL2-8℃. 避光保存按需

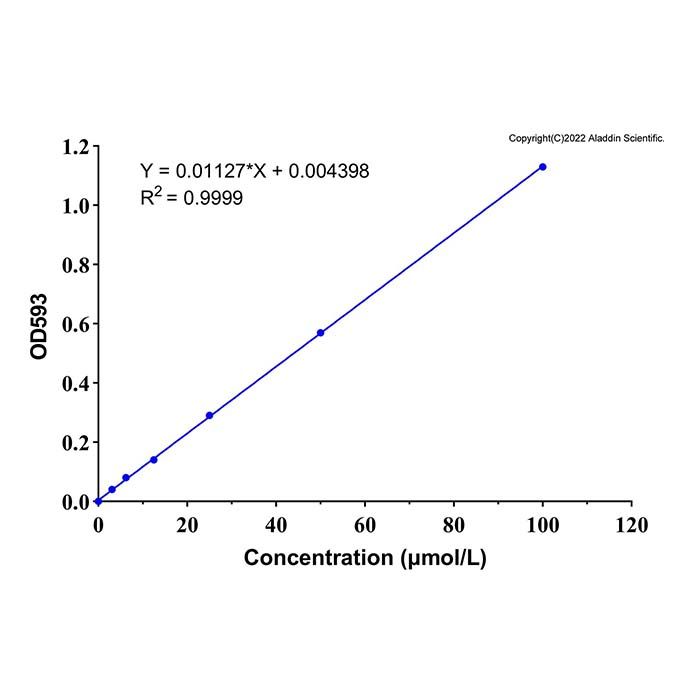

Ferrous Ion Content Assay Kit (TPTZ, Colorimetric Method) (F1515876) - Standard Curve assay
Under acidic conditions, Fe²⁺ in the sample reacts with tripyridyltriazine (TPTZ) to form a blue complex that has a maximum absorbance at 593 nm. The concentration of Fe²⁺ is then determined by measuring the absorbance at this wavelength. This assay can detect Fe²⁺ at levels as low as 1.56 µM, and exhibits a strong linear relationship within the concentration range of 1.56 - 100 µM.
