A2629014计算溶液所需的质量、体积或浓度。
Y6
有货
为什么选择此级别
提供 ≥98% 纯度，适用于对基线干扰要求严格的色谱和分析工作流程。
储存与运输
2-8°C储存,避光,充氩。低温运输 。请查阅批次 COA 获取详细规格。
质量文档
SDS、COA、产品数据表及规格说明书均可下载。可通过批号查询获取批次 COA。
文献证明
在色谱分析、有机合成和交叉偶联反应领域已被 0 篇同行评审文献引用。
概述
Description
Non-fullerene acceptors (NFAs) are currently a major focus of research in the development of bulk-heterojunction organic solar cells (OSCs). In contrast to the widely used fullerene acceptors (FAs), the optical properties and electronic energy levels of NFAs can be designed and readily tuned. NFA-based OSCs can also achieve greater thermal stability and photochemical stability, as well as longer device lifetimes, than their FA-based counterparts.Recent developments have led to a rapid increase in power conversion efficiencies for NFA OSCs, with values now exceeding 15% in a single junction cell, and >17% for a tandem cell, demonstrating the viability of using NFAs to replace FAs in next-generation high-performance OSCs.Y6 is a non-fullerene acceptor-donor-acceptor (A-D-A) type small molecular acceptor (SMA) with flexible alkyl chains and a centrally fused ring. It has a ladder-type electron-deficient core, which can be blended with PM6 for organic photovoltaic applications.Y6 is a non-fullerene acceptor (NFA) that uses an electron-deficient molecular core to obtain a low bandgap with improved electron affinity. OPV devices made from Y6 can reach exceptionally high performances in single-junction devices, with a maximum PCE reported of 15.7% (14.9% certified by Enli Tech Laboratory) when paired with PM6. Y6 is versatile and can be employed in both conventional and inverted OPV device architectures and can maintain a high PCE with varying active layer thicknesses (13.6% in thick 300 nm layers).
规格
别名
12,13-二(2-乙基己基)-3,9-双十一基-12,13-二氢-[1,2,5]噻二唑并[3,4-E]噻吩并[2'',3'',4',5']噻吩并[2',3',4,5]吡咯并[3,2-G]噻吩并[2',3',4,5]噻吩并[3,2-B]吲哚-2,10-二(5,6-二氟-3-(二氰基亚甲基)茚-1-酮)
英文别名
BTP-4F | Non fullerene acceptor Y6 | PCE 157 | 2,2'-[[12,13-Bis(2-ethylhexyl)-12,13-dihydro-3,9-diundecylbisthieno[2'',3'':4',5']thieno[2',3':4,5]pyrrolo[3,2-e:2',3'-g][2,1,3]benzothiadiazole-2,10-diyl]bis[methylidyne(5,6-difluoro-3-oxo-1H-indene-2,1(3H)-
规格或纯度
≥98%
英文名称
Y6
储存条件
2-8°C储存,避光,充氩
运输条件
低温运输
纯度
≥98%
名称和识别符
PubChem SID
分子类型
小分子

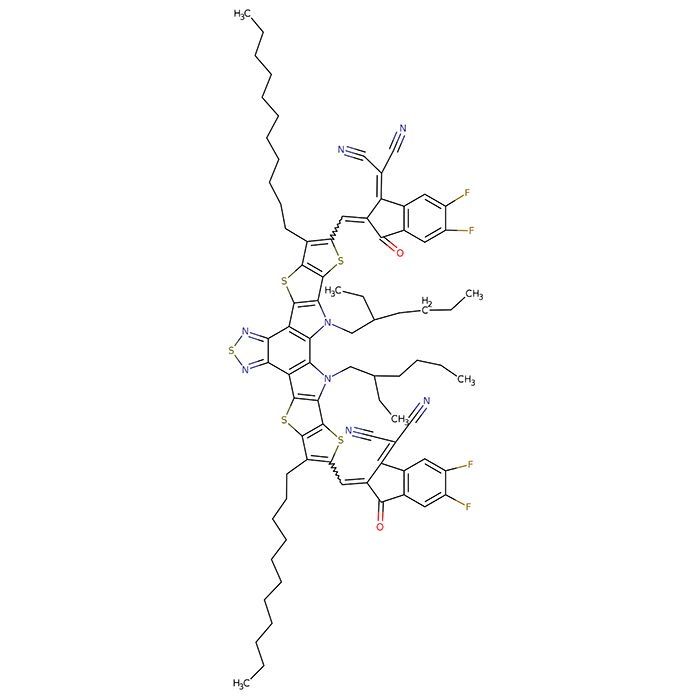

IUPAC Name
2-[2-[[23-[[1-(dicyanomethylidene)-5,6-difluoro-3-oxoinden-2-ylidene]methyl]-3,27-bis(2-ethylhexyl)-8,22-di(undecyl)-6,10,15,20,24-pentathia-3,14,16,27-tetrazaoctacyclo[16.9.0.02,12.04,11.05,9.013,17.019,26.021,25]heptacosa-1(18),2(12),4(11),5(9),7,13,16,19(26),21(25),22-decaen-7-yl]methylidene]-5,6-difluoro-3-oxoinden-1-ylidene]propanedinitrile
INCHI
1S/C82H86F4N8O2S5/c1-7-13-17-19-21-23-25-27-29-33-51-63(39-57-65(49(41-87)42-88)53-35-59(83)61(85)37-55(53)75(57)95)97-81-73-79(99-77(51)81)67-69-70(92-101-91-69)68-72(71(67)93(73)45-47(11-5)31-15-9-3)94(46-48(12-6)32-16-10-4)74-80(68)100-78-52(34-30-28-26-24-22-20-18-14-8-2)64(98-82(74)78)40-58-66(50(43-89)44-90)54-36-60(84)62(86)38-56(54)76(58)96/h35-40,47-48H,7-34,45-46H2,1-6H3
InChi Key
XJRVXAOYOOOQLU-UHFFFAOYSA-N
Smiles
CCCCCCCCCCCC1=C(SC2=C1SC3=C2N(C4=C3C5=NSN=C5C6=C4N(C7=C6SC8=C7SC(=C8CCCCCCCCCCC)C=C9C(=C(C#N)C#N)C1=CC(=C(C=C1C9=O)F)F)CC(CC)CCCC)CC(CC)CCCC)C=C1C(=C(C#N)C#N)C2=CC(=C(C=C2C1=O)F)F
PubChem CID
分子量
1451.93
技术文档
高级数据
化学和物理性质
溶解性
氯仿：可溶
闪点(℉)
Not applicable
闪点(℃)
Not applicable
安全和危险性（GHS）
质检证书（CoA,COO,BSE/TSE 和分析图谱)
技术文档和文章
溶液计算器
常见问题
本产品的纯度是多少？
本产品的化学纯度（含量）为 ≥98%。批次的具体数值以分析证书（COA）为准。
本产品应如何储存？
请于室温条件下保存。
本产品的 CAS 号、分子式和分子量是多少？
本产品的 CAS 号为 2304444-49-1，分子式为 C82H86F4N8O2S5，分子量为 1451.93 g/mol。InChIKey XJRVXAOYOOOQLU-UHFFFAOYSA-N。
如何获取批次专用COA？
每个订单都会随附分析证书（COA），您也可以从账户订单历史中下载。如需订购前的COA，请联系您的客户代表，或使用PDP上的"申请COA"按钮——我们将提供代表性批次的COA。
产品仅提供给经过验证的企业、机构和合格的专业人员用于研发。不适用于人类、动物、诊断或治疗。
