PE-Cyanine®7 (PE-Cy7, RPE-Cy7) is a far red-emitting tandem fluorophore that combines phycoerythrin (PE) and Cy7. The donor molecule, PE can be excited by the 488-nm blue, 532-nm green, or 561-nm yellow-green laser and and transfers energy to the acceptor molecule, Cy7, which emits light that can be captured with a 780/60 nm bandpass filter. PE-Cy7 has an excitation peak at 565 nm and an emission peak at 774 nm.
规格
产品名称
LumiDye™ PE-Cy7
别名
复合荧光蛋白PE-Cy7
英文别名
PE conjugated Cy7 | PE-Cy7 Tandem | Cy7-PE | PE-Cyanine 7 | Phycoerythrin-Cyanine 7 | Phycoerythrin Cy7
规格或纯度
见COA
Excitation(nm)
Blue Laser(488nm), Green Laser(532nm), Yellow-Green Laser(561nm)
Product should be stored at 2–8℃ in the dark. DO NOT FREEZE.

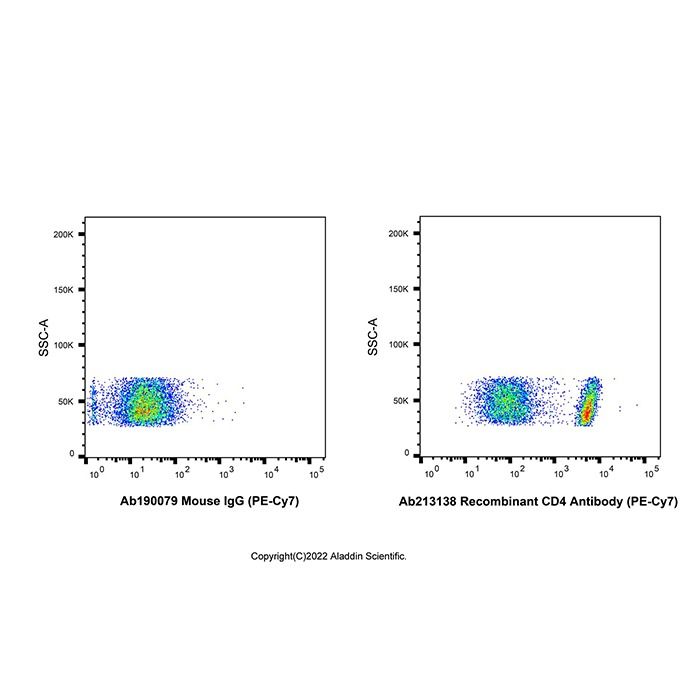

PE-Cy7 (rp185193) - Flow Cytometry Flow cytometry analysis of CD4 expression by human peripheral blood lymphocytes (right panel) compared to an isotype control (left panel). Cells were stained with Recombinant CD4 Antibody (PE-Cy7) (Ab213138) at 5μL/test for 1 hour at 4°C. Left panel - Mouse IgG (PE-Cy7) (Ab190079).
PE-Cy7 (rp185193) - Flow Cytometry Flow cytometry analysis of CD4 expression by human peripheral blood lymphocytes (red) compared to an isotype control (blue). Cells were stained with Recombinant CD4 Antibody (PE-Cy7) (Ab213138) at 5μL/test for 1 hour at 4°C. Blue - Mouse IgG (PE-Cy7) (Ab190079). Black - Unlabelled control, cells without incubation with primary antibody.
