计算溶液所需的质量、体积或浓度。
为什么选择此级别
，适用于对基线干扰要求严格的色谱和分析工作流程。
储存与运输
室温。常规运输 。请查阅批次 COA 获取详细规格。
质量文档
SDS、COA、产品数据表及规格说明书均可下载。可通过批号查询获取批次 COA。
文献证明
在色谱分析、有机合成和交叉偶联反应领域已被 2260 篇同行评审文献引用。
概述
xGnP ® graphene nanoplatelets are unique nanoparticles consisting of short stacks of graphene sheets having a platelet shape. The unique size and platelet morphology of xGnP ® graphene nanoplatelets makes these particles especially effecti
aladdin® graphene nanoplatelets are unique nanoparticles consisting of short stacks of graphene sheets having a platelet shape.
The unique size and platelet morphology of aladdin® graphene nanoplatelets makes these particles especially effective at providing barrier properties, while their pure graphitic composition makes them excellent electrical and thermal conductors. aladdin® graphene nanoplatelets can improve mechanical properties such as stiffness, strength, and surface hardness of the matrix material.
aladdin® graphene nanoplatelets are compatible with almost all polymers, and can be an active ingredient in inks or coatings as well as an excellent additive to platics of all types. The unique manufacturing processes are non-oxidizing, so material has a pristine graphitic surface of sp2 carbon molecules that makes it especially suitable for applications requiring high electrical or thermal conductivity.
Grade H particles have an average thickness of approximately 15 nanometers and a typical surface area of 50 to 80 m2/g. Grade H is available with average particle diameters of 5, 15 or 25 microns.
Note: Graphene nanoplatelets have naturally occurring functional groups like ethers, carboxyls, or hydroxyls that can react with atmospheric humidity to form acids or other compounds. These functional groups are present on the edges of the particles and their wt% varies with particle size.
Application
Ultracapacitor electrodes Anode materials for lithium-ion batteries Conductive additive for battery electrodes Electrically conductive inks Thermally conductive films and coatings Additive for lightweight composites Films or coatings for EMI shielding Substrate for chemical and biochemical sensors Barrier material for packaging Additive for super-strong concrete Additive for metal-matrix composites
Purpose：
Ultracapacitor electrodes
Anode materials for lithium-ion batteries
Conductive additive for battery electrodes
Electrically conductive inks
Thermally conductive films and coatings
Additive for lightweight composites
Films or coatings for EMI shielding
Substrate for chemical and biochemical sensors
Barrier material for packaging
Additive for super-strong concrete
Additive for metal-matrix composites
规格
英文别名
16291-96-6 (Parent) | 633100_ALDRICH | 53663_SIAL | EINECS 211-989-5 | 496537_ALDRICH | UNII-FES86MR7ZI | 64365-11-3 (activated) | UNII-3L13R06H7D | 484164_ALDRICH | 332461_SIAL | 390127_SIAL | 496588_ALDRICH | 51127_SIAL | 675342_SIAL | 18008_RIEDEL | 2P
规格或纯度
粒径25μm，比表面积7.5-11.5m²/g
英文名称
Graphene nanoplatelets
储存条件
室温
运输条件
常规运输
法律信息
xGnP is a registered trademark of XG Sciences, Inc.
名称和识别符
EC号
231-955-3
分子类型
小分子
IUPAC Name
carbon
INCHI
1S/C
InChi Key
OKTJSMMVPCPJKN-UHFFFAOYSA-N

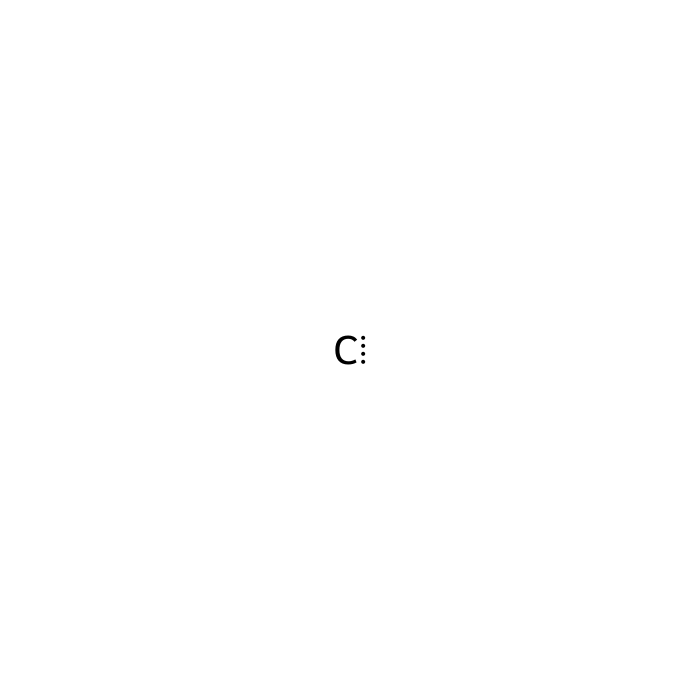

Smiles
[C]
Isomeric SMILES
[C]
关联CAS
分子量
12.01
技术文档
高级数据
系统学分类
分类树（Taxonomy Tree）
- 界（kingdom) 有机化合物
| 界（kingdom) | 有机化合物 |
|---|---|
| 超类（Superclass) | 暂无 |
| 类（Class) | 暂无 |
| 亚类（Subclass） | 暂无 |
| 中间层级节点（Intermediate Tree Nodes） | 暂无 |
| 直接上位类(Direct Parent) | 有机化合物 |
| 其他上位类（Alternative Parents） | 暂无 |
| 分子骨架（Molecular Framework) | 脂肪族无环化合物 |
| 取代基（Substituents） | 脂肪族非环化合物 - 有机化合物 |
| 描述（Description） | 该化合物属于有机化合物类别。此类化合物至少含一个碳原子，但排除异氰化物/氰化物及其非烃基衍生物、硫光气、二硒化碳、一硫化碳、二硫化碳、亚硫化碳、一氧化碳、三氧化碳、亚氧化碳及二一氧化碳。 |
| 外部描述符（External Descriptors） | nonmetal atom - carbon group element atom |
三维结构
交互式化学结构模型
化学和物理性质
熔点
3652-3697°C
分子量
12.011 g/mol
XLogP3
0.600
氢键供体数Hydrogen Bond Donor Count
0
氢键受体数Hydrogen Bond Acceptor Count
0
可旋转键计数Rotatable Bond Count
0
精确质量Exact Mass
12 Da
单同位素质量Monoisotopic Mass
12 Da
拓扑极表面积Topological Polar Surface Area
0.000 Ų
重原子数Heavy Atom Count
1
形式电荷Formal Charge
0
复杂度Complexity
0.000
同位素原子数Isotope Atom Count
0
定义的原子立体中心计数Defined Atom Stereocenter Count
0
未定义的原子立体中心计数Undefined Atom Stereocenter Count
0
定义的键立体中心计数Defined Bond Stereocenter Count
0
未定义的键立体中心计数Undefined Bond Stereocenter Count
0
所有立体化学键的总数The total count of all stereochemical bonds
0
共价键合单元计数Covalently-Bonded Unit Count
1
安全和危险性（GHS）
象形图
信号词
警告
危险声明
H319: 引起严重眼睛刺激
H335: 可能引起呼吸道刺激
预防措施声明
P261: 避免吸入灰尘/烟雾/气体/雾/蒸汽/喷雾
P305+P351+P338: 如进入眼睛：用水小心冲洗几分钟。如戴隐形眼镜并可方便地取出，取出隐形眼镜。继续冲洗。
RTECS
MD9659600
质检证书（CoA,COO,BSE/TSE 和分析图谱)
C of A & Other Certificates(BSE/TSE, COO):
输入批号以搜索分析图谱:
