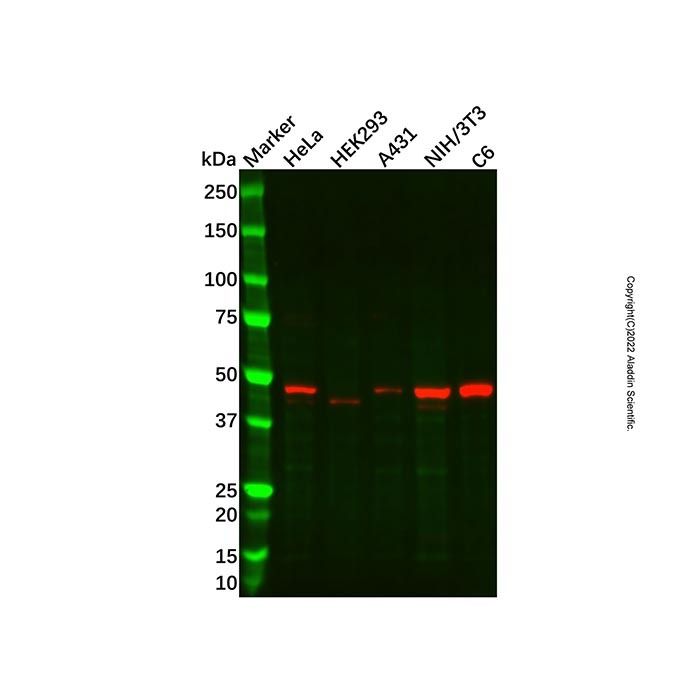

MEK4/MKK4 Antibody (Ab114888) - Western Blot All lanes: MEK4/MKK4 Antibody (Ab114888) at 1/1000 dilution Samples: Lysates at 20 µg per lane Secondary: Goat Anti-Rabbit IgG H&L (HRP) (Ab170144) at 1/20000 dilution Predicted band size: 44 kDa Observed band size: 46 kDa Exposure time: 17.4 s
MEK4/MKK4 Antibody (Ab114888) - IF/ICC Immunofluorescent analysis of MEK4/MKK4 Antibody (Ab114888) staining in COS7 cells. Formalin-fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 5-10 minutes and blocked with 3% BSA-PBS for 30 minutes at room temperature. Cells were probed with the primary antibody in 3% BSA-PBS and incubated overnight at 4 °C in a hidified chamber. Cells were washed with PBST and incubated with a AF594-conjugated secondary antibody (red) in PBS at room temperature in the dark.
MEK4/MKK4 Antibody (Ab114888) - IHC Immunohistochemical analysis of MEK4/MKK4 Antibody (Ab114888) staining in human skeletal muscle formalin fixed paraffin embedded tissue section. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0). The section was then incubated with the antibody at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.
